SKU: C-UCFC212D1-NTN

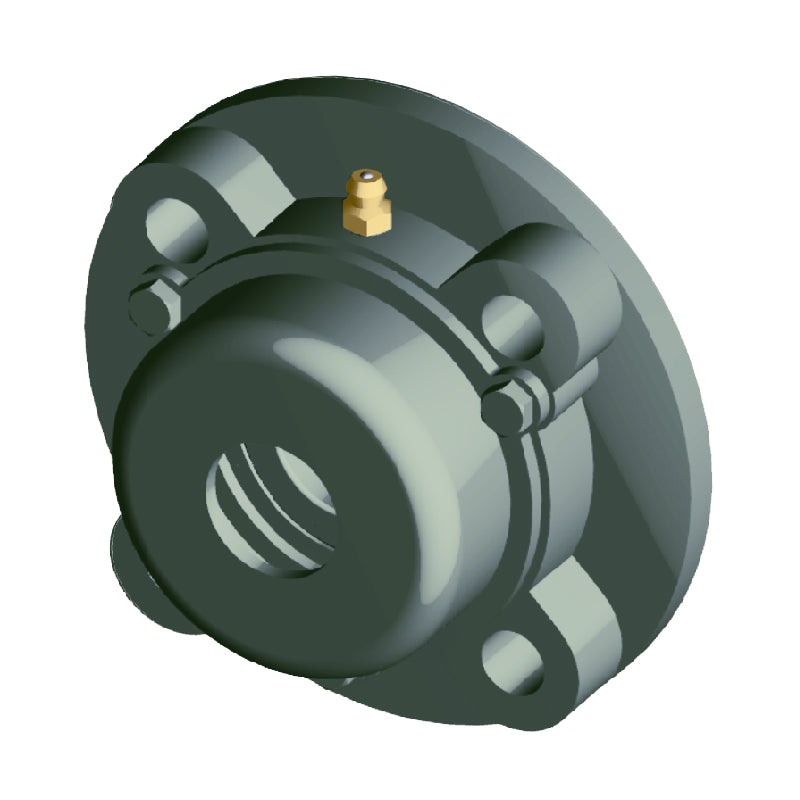

NTN C-UCFC212D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFC212D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€102,95
ex VAT
Regular price
Sale price
€102,95
ex VAT
In stock
Price Break
3+
€78,05
4+
€73,67
9+
€72,79
19+
€71,91
49+
€71,04
99+
€70,16
499+
€65,78
999+
€64,90
1999+
€64,02
2999+
€63,14
4999+
€61,39
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 113.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| L | 195mm |
| J | 160mm |
| (J<sub>1</sub>) | 113.1mm |
| A<sub>2</sub> | 17mm |
| N | 19mm |
| A<sub>3</sub> | 12mm |
| A<sub>1C</sub> | 38mm |
| A | 48mm |
| H<sub>3</sub> | 135mm |
| B | 65.1mm |
| S | 25.4mm |
| F (Min.) | mm |
| A<sub>5</sub> | 86mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 5.9 kg |
