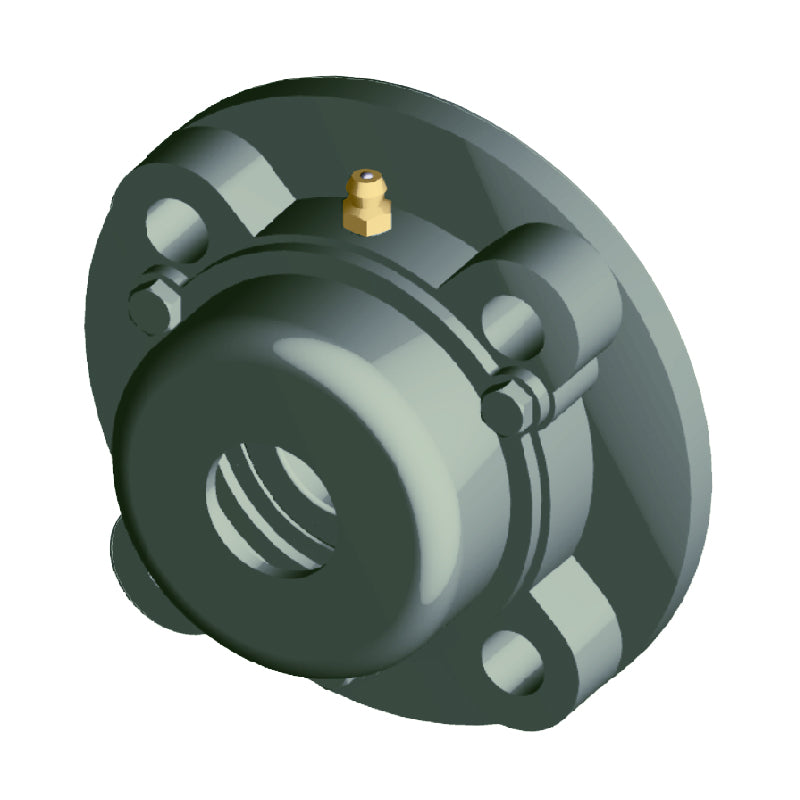

NTN C-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€72,95
ex VAT
Regular price
Sale price
€72,95
ex VAT
In stock
Price Break
3+
€55,08
4+
€51,99
9+
€51,37
19+
€50,75
49+
€50,13
99+
€49,51
499+
€46,42
999+
€45,80
1999+
€45,18
2999+
€44,56
4999+
€43,32
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 97.6mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| L | 165mm |
| J | 138mm |
| (J<sub>1</sub>) | 97.6mm |
| A<sub>2</sub> | 10mm |
| N | 16mm |
| A<sub>3</sub> | 12mm |
| A<sub>1C</sub> | 29mm |
| A | 40mm |
| H<sub>3</sub> | 110mm |
| B | 51.6mm |
| S | 19mm |
| F (Min.) | mm |
| A<sub>5</sub> | 72mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 3.6 kg |
