SKU: BS2-2207-2CS/VT143-SKF

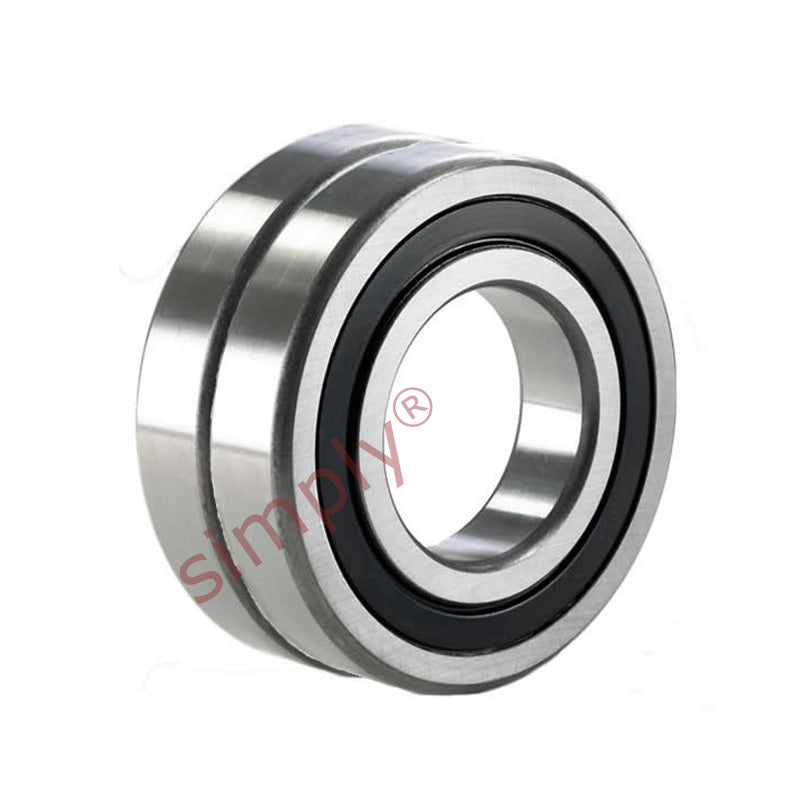

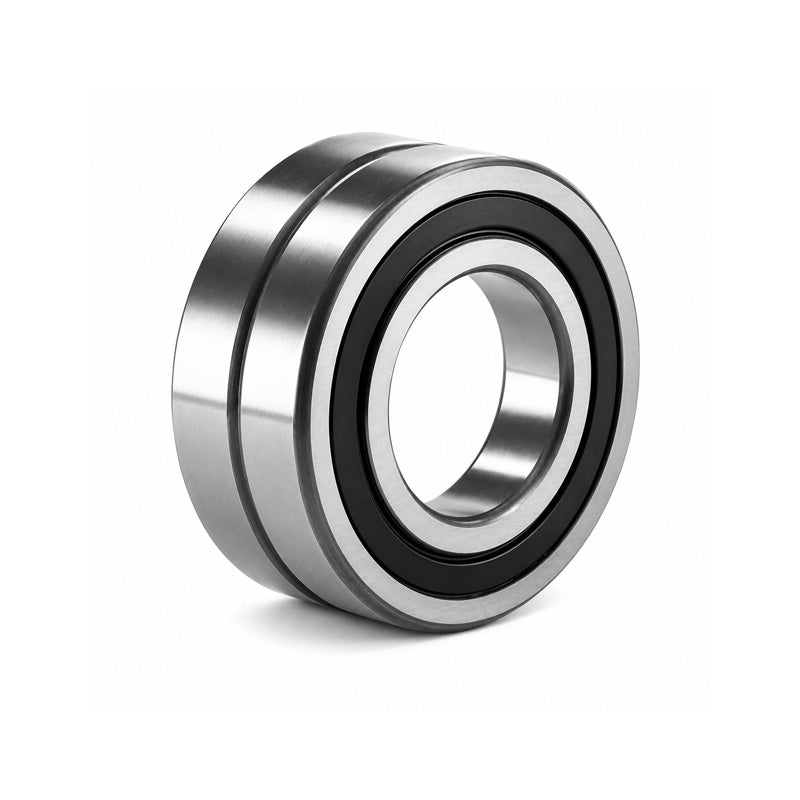

SKF BS222072CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 35x72x28mm

Name: SKF BS222072CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 35x72x28mm
Brand: SKF
SKU: BS2-2207-2CS/VT143-SKF
Price: 100.95 EUR
Availability: InStock

€100,95 ex VAT

Sale Sold out

Equivalent to: BS222072RS/VT143

In stock

Price Break

3+ €76,82

4+ €72,51

9+ €71,65

19+ €70,78

29+ €69,92

39+ €69,06

49+ €64,74

59+ €63,88

249+ €63,01

499+ €62,15

999+ €60,42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 72mm
Width:: 28mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

---	Dimensions
d	35mm
D	72mm
B	28mm
D1	63.7mm
d2	43mm
r1r2 min	1.1mm
b	3.7mm
K	2mm
da min	42mm
da max	43mm
Da max	65mm
ra max	1mm
---	Speeds, Loads and Weights
Dynamic load C	86.5 kN
Static load Co	85 kN
Fatigue load limit Pu	9.3 kN
Limiting speed	2400 rpm
Weight	0.52 kg
---	Factors
Calculation factor e	0.31
Calculation factor Y1	2.2
Calculation factor Y2	3.3
Calculation factor Y0	2.2
