SKU: BK3026-EU

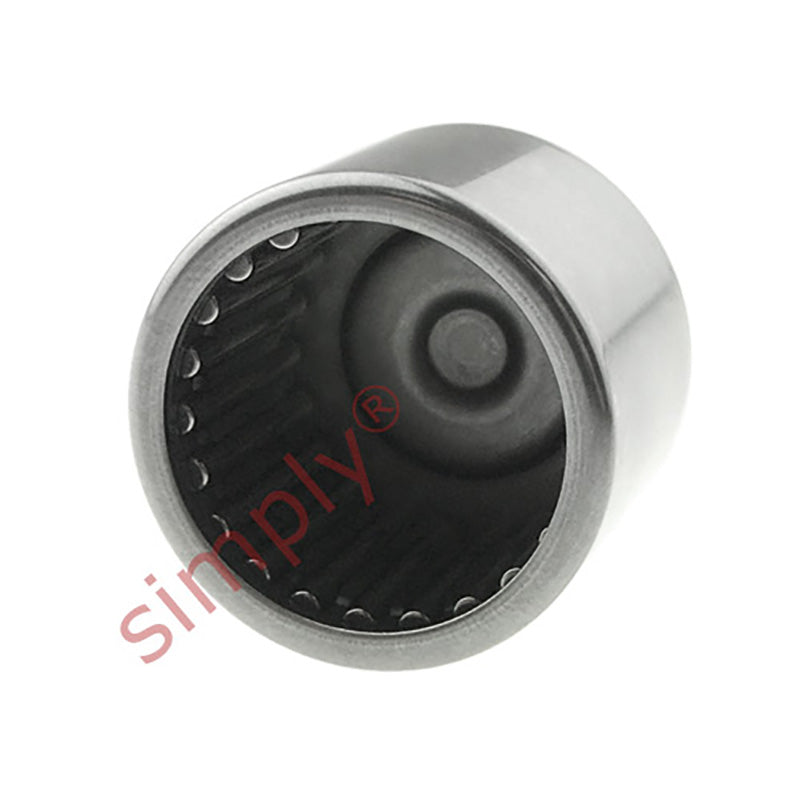

BK3026 Budget Drawn Cup Needle Roller Bearing with One Closed End 30x37x26mm
BK3026 Budget Drawn Cup Needle Roller Bearing with One Closed End 30x37x26mm
Out of stock
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 26mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 37mm |
| C | 26mm |
| Dynamic load C | 27000 N |
| Static load Co | 54000 N |
| Fatigue load limit Pu | 6550 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| C1 | 23.3mm |
| r1r2 min | 0.8mm |
| Da max | 32mm |
| ra max | 0.8mm |
| Inner ring | IR25x30x26.5 |
| Seal | G/SD30x37x4 |
| Weight | 58 g |
