SKU: BH-3324

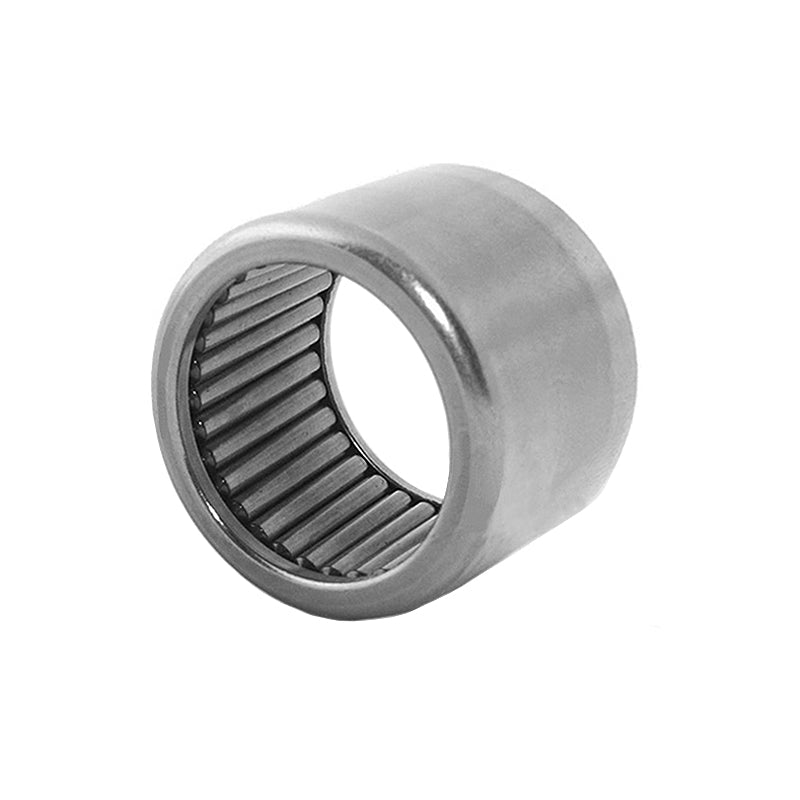

Major Brand BH3324 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 2-1/16x2-17/32x1-1/2 inch
Major Brand BH3324 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 2-1/16x2-17/32x1-1/2 inch
Out of stock
Share this product
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 52.39mm = 2.063 (2-1/16) inch
- Outside Diameter:
- 64.29mm = 2.531 (2-17/32) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Inside Diameter | 52.39mm = 2.0625 inch |
|---|---|
| Outside Diameter | 64.29mm = 2.5312 inch |
| Width | 38.1mm = 1.5 inch |
| Dynamic load C | 97 kN |
| Static load Co | 226 kN |
| S max | 52.388mm = 2.0625 inch |
| S min | 52.372mm = 2.0619 inch |
| H max | 64.305mm = 2.5317 inch |
| H min | 64.28mm = 2.5307 inch |
