SKU: BGSB634099.MB

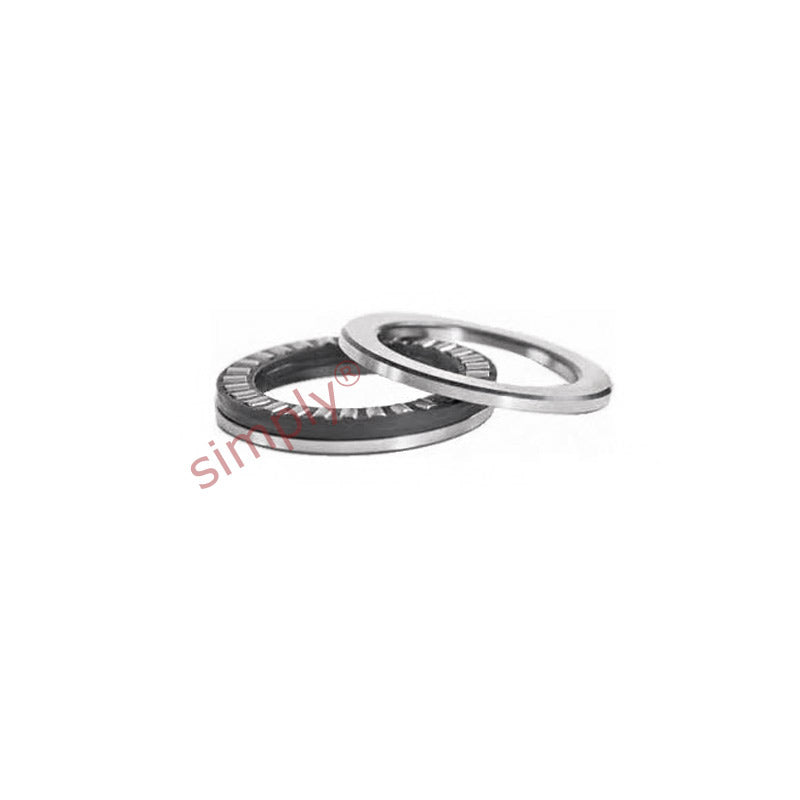

Major Brand BGSB634099 Cylindrical Roller Thrust Bearing 2130x2250x76mm
Major Brand BGSB634099 Cylindrical Roller Thrust Bearing 2130x2250x76mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 2130mm
- Outside Diameter:
- 2250mm
- Width:
- 76mm
Technical
Technical
| d | 2130mm |
|---|---|
| D | 2250mm |
| H | 76mm |
| Dynamic load C | 2320 kN |
| Static load Co | 10200 kN |
| Fatigue load limit Pu | 3450 kN |
| Min load factor A | 830 |
| Reference speed | 110 rpm |
| Limiting speed | 220 rpm |
| Weight | 235 kg |
