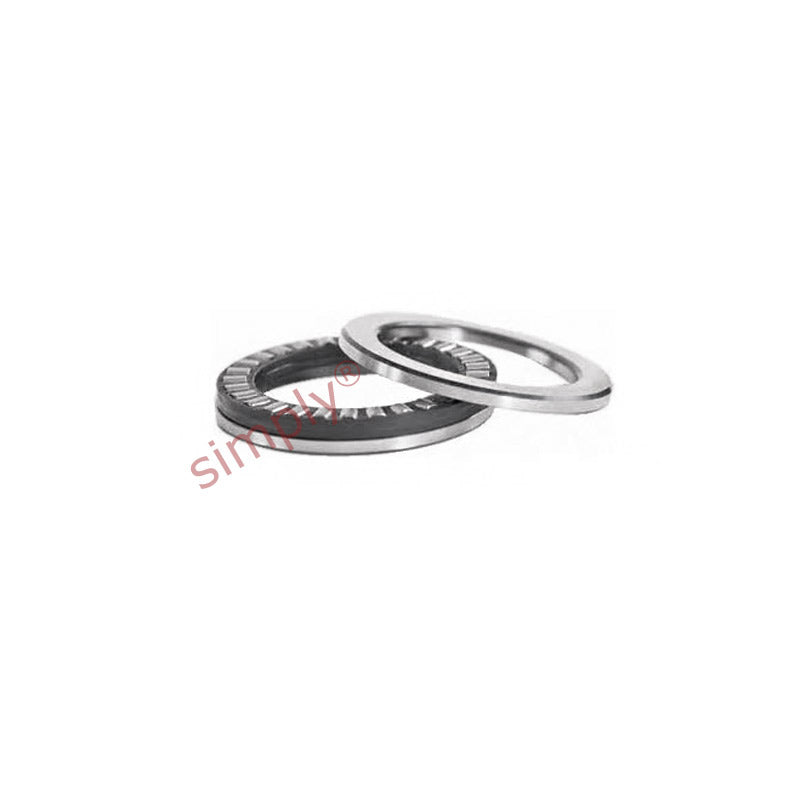

Major Brand BGSB358469 Cylindrical Roller Thrust Bearing 431.8x571.5x88.9mm
Major Brand BGSB358469 Cylindrical Roller Thrust Bearing 431.8x571.5x88.9mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 431.8mm
- Outside Diameter:
- 571.5mm
- Width:
- 88.9mm
Technical
Technical
| d | 431.8mm |
|---|---|
| D | 571.5mm |
| H | 88.9mm |
| Dynamic load C | 2040 kN |
| Static load Co | 11800 kN |
| Fatigue load limit Pu | 800 kN |
| Min load factor A | 11 |
| Reference speed | 190 rpm |
| Limiting speed | 280 rpm |
| Weight | 66.5 kg |
