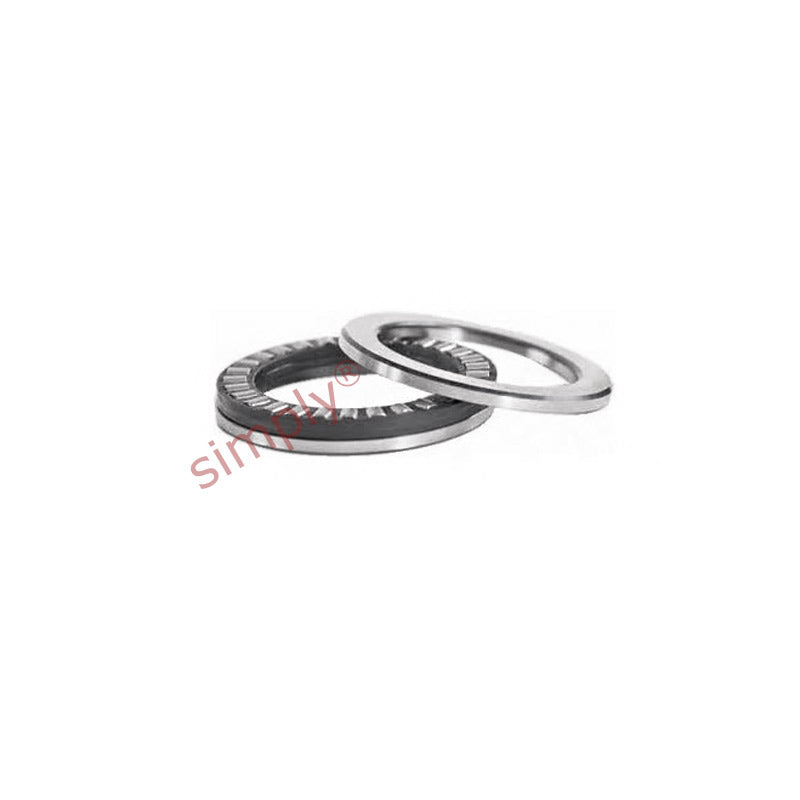

Major Brand BGSB358395/HA1 Cylindrical Roller Thrust Bearing 1560x1650x57mm
Major Brand BGSB358395/HA1 Cylindrical Roller Thrust Bearing 1560x1650x57mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 1560mm
- Outside Diameter:
- 1650mm
- Width:
- 57mm
Technical
Technical
| d | 1560mm |
|---|---|
| D | 1650mm |
| H | 57mm |
| Dynamic load C | 765 kN |
| Static load Co | 8150 kN |
| Fatigue load limit Pu | 390 kN |
| Min load factor A | 5300 |
| Reference speed | 160 rpm |
| Limiting speed | 320 rpm |
| Weight | 97 kg |
