SKU: BGSB358221.MB

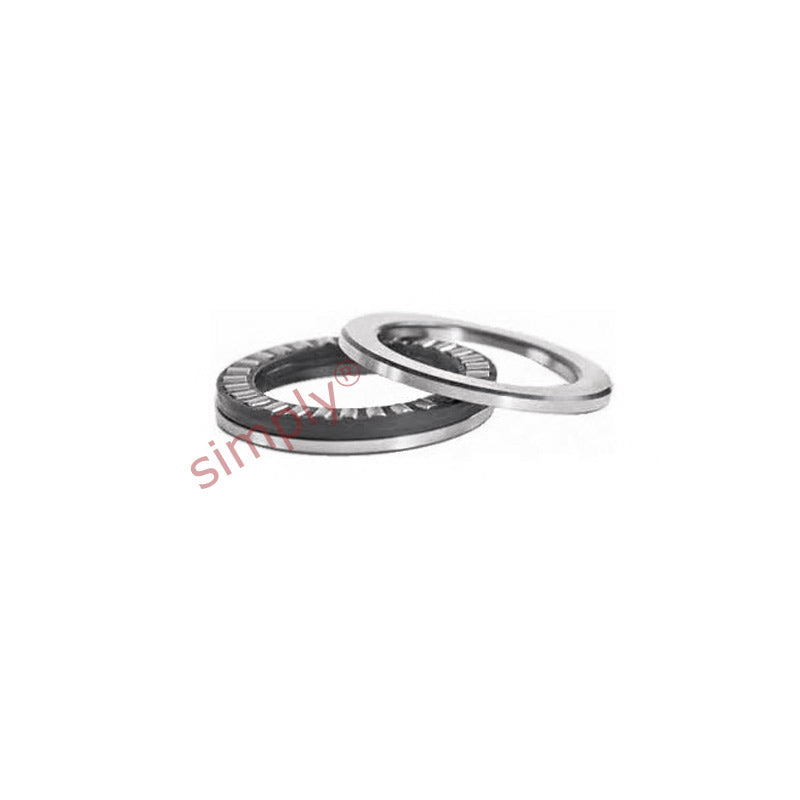

Major Brand BGSB358221 Cylindrical Roller Thrust Bearing 560x665x85mm
Major Brand BGSB358221 Cylindrical Roller Thrust Bearing 560x665x85mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 560mm
- Outside Diameter:
- 665mm
- Width:
- 85mm
Technical
Technical
| d | 560mm |
|---|---|
| D | 665mm |
| H | 85mm |
| Dynamic load C | 1800 kN |
| Static load Co | 11000 kN |
| Fatigue load limit Pu | 710 kN |
| Min load factor A | 9.7 |
| Reference speed | 260 rpm |
| Limiting speed | 530 rpm |
| Weight | 60.5 kg |
