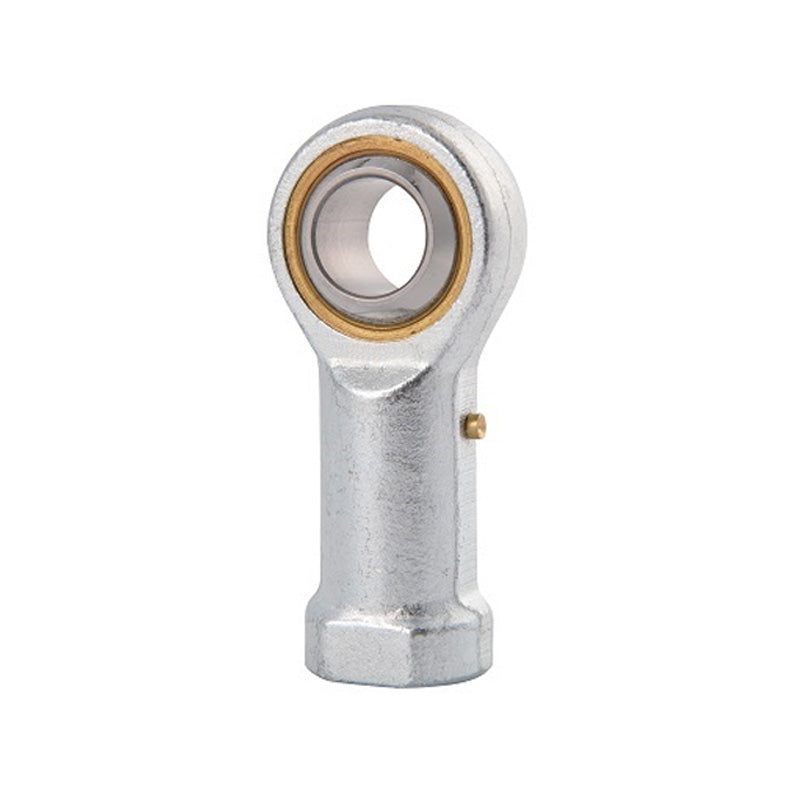

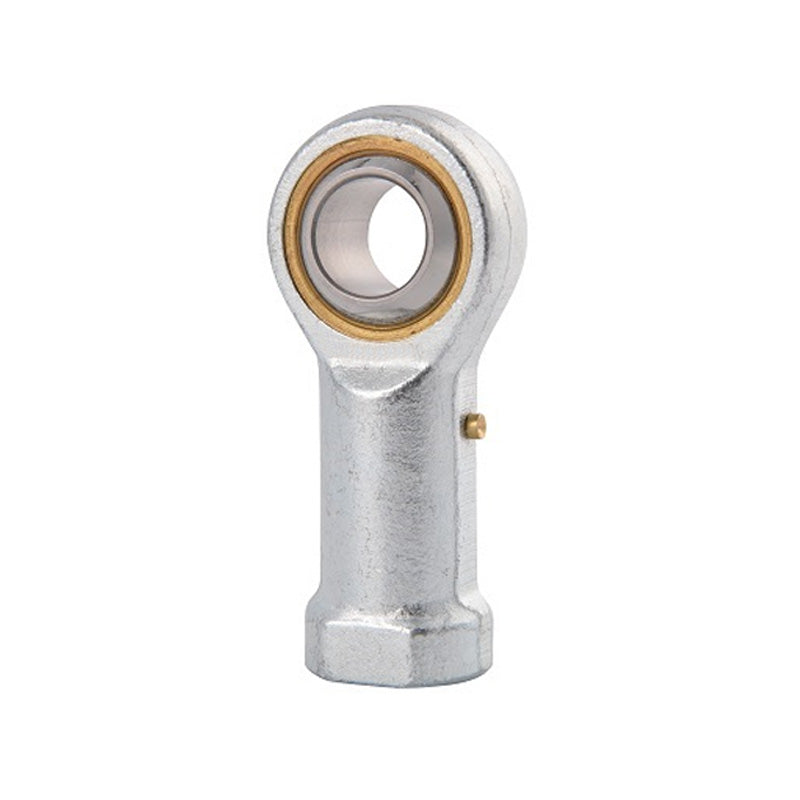

Durbal BEFN25-80-502 Maintenance Required Left Hand Metric Stainless Steel Female Rod End M24x2 Thread

DURBAL Heavy-Duty Maintenance Required Stainless Steel Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a forged, electro-polished stainless steel housing with a bearing brass outer ring with oil groove and drill holes and stainless steel joint ball. Primary application in situations of alternating stresses or impact loads and preferred in situations of large swivelling movements. Made of forged stainless steel, extremely high loads resistant and surface electropolished which ensures you a very high corrosion resistance. Rod ends from size 6-30 can be greased subsequently by means of a funnel-type lubrication nipple. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -40 deg C to +110 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M24x2

Thread M / F:

Female

Thread Direction:

Left Hand

Inside Diameter:

25mm
