SKU: BB-608FF-B180-10-GL-CC

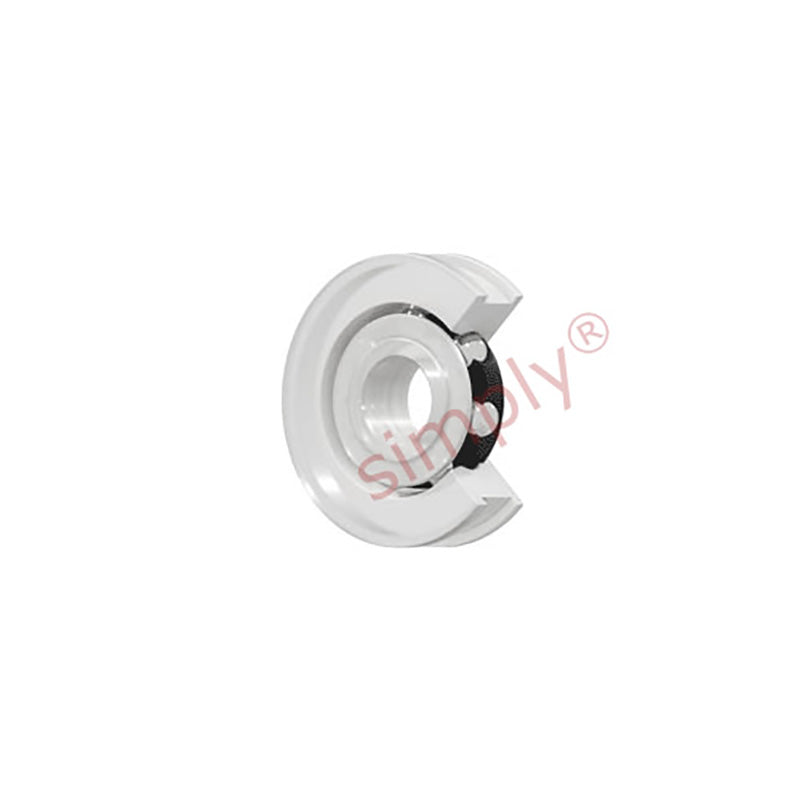

xiros xirodur BB608FFB18010GLCC Polymer Ball Bearing with PA Cage and Glass Balls with Two Side Flange and Double Sided Cover Plate 8x28x7mm - Allow 2-3 Days
xiros xirodur BB608FFB18010GLCC Polymer Ball Bearing with PA Cage and Glass Balls with Two Side Flange and Double Sided Cover Plate 8x28x7mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages, stainless steel balls and cover discs on both sides of the bearing. Both sides of this bearing are flanged. These bearings can be used wherever xiros® bearings are already being used and where an axial mounting in not practical. Benefits: Insensitive to dirt due to cover plates, no axial fitting needed, corrosion-resistant |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 28mm
- Width:
- 7mm
- Seals / Shields:
- Cover Plate
- Clearance:
- * Standard
Technical
Technical

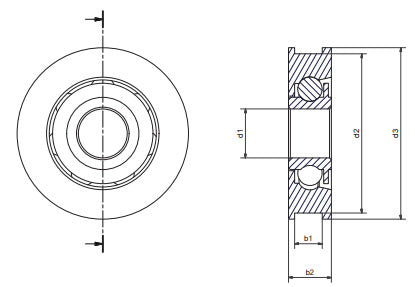

| d1 | 8mm |
|---|---|
| d2 | 26mm |
| d3 | 28mm |
| b1 | 4mm |
| b2 | 7mm |
| Static load capacity | 60 N |
| Dynamic load capacity | 84 N |
| Max speed | 2200 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Glass |
