SKU: B13M8SS-CHI

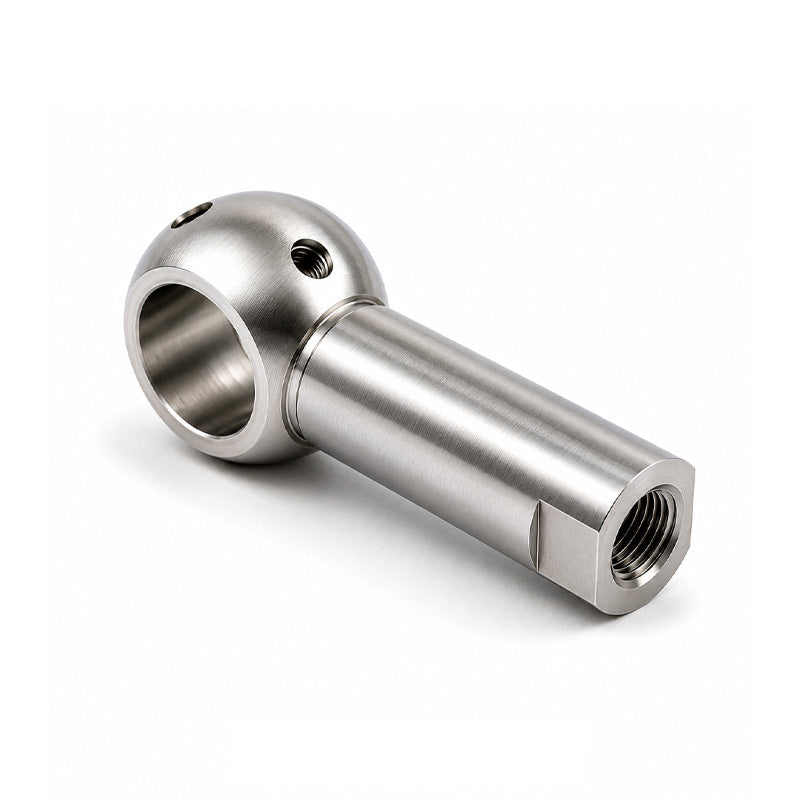

Chiavette B13SS Right Hand Stainless Steel Ball Socket with Internal Snap Ring and Holes for Safety Clip 13mm Ball Diameter M8 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Chiavette Stainless Steel Ball Sockets: Ball sockets are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball sockets are intended to be used alongside a compatible ball stud that when combined will produce a ball joint. Crafted with durability in mind, these ball sockets feature an internal snap ring for secure attachment, ensuring seamless integration into various mechanical systems. These particular types of ball sockets feature an external groove to accommodate a compatible safety clip which ensures secure attachment. Crafted from high-quality stainless steel, these ball sockets are inherently resistant to corrosion, rust, and chemical damage, making them ideal for use in marine environments, chemical processing plants, and other corrosive settings.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M8
- Thread Direction:
- Right Hand
- Outside Diameter:
- 13mm
- Style:
- Standard
- Type:
- With Safety Clip
Technical
| --- | Dimensions |
|---|---|
| Thread | Right Hand |
| d1 | 13mm |
| d2 | M8 |
| a | 30mm (+/-0.3) |
| d3 | 13mm (+/-0.5) |
| d4 | 19.3mm (+/-0.5) |
| e | 14mm |
| l1 | 20mm (+/-0.3) |
| h2 | 1.15mm (+/-0.5) |
| l2 | 9.1mm (+/-0.3) |
| sw1 | 11mm |
| Weight | 0.029 kg |
