SKU: B-86

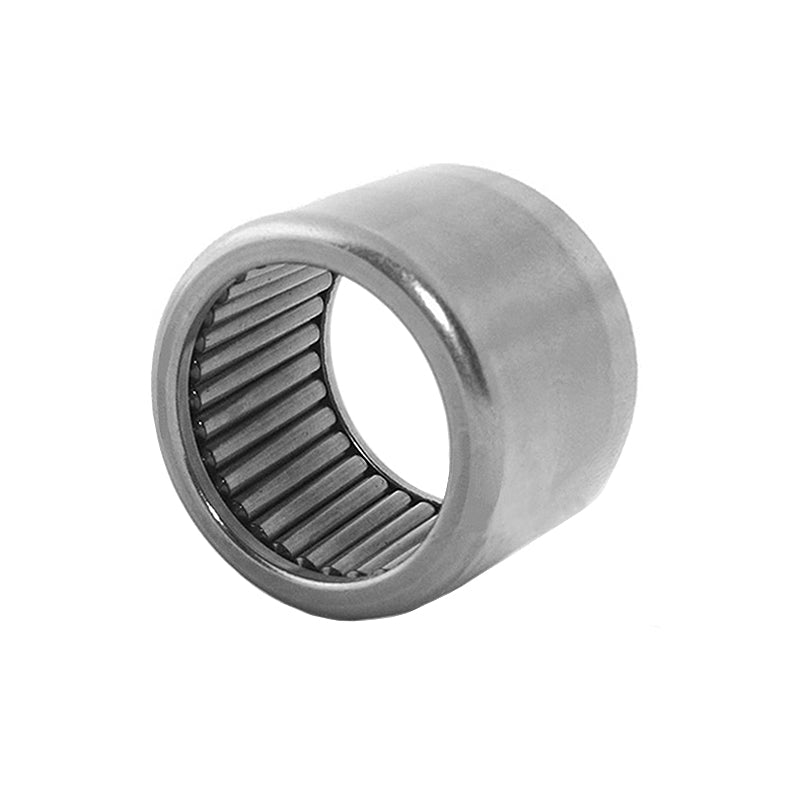

Major Branded B86 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1/2x11/16x3/8 inch
- Regular price
- €13,95 ex VAT
- Sale price
- €13,95
- Regular price
-
In stock
Quantity Price Breaks
5
€12,42
9
€11,72
19
€11,58
29
€11,44
49
€11,30
74
€11,16
99
€10,46
199
€10,32
249
€10,18
499
€10,04
999
€9,77
SKU:
B-86
Major Branded B86 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1/2x11/16x3/8 inch
- Regular price
- €13,95 ex VAT
- Sale price
- €13,95
- Regular price
-
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
Technical

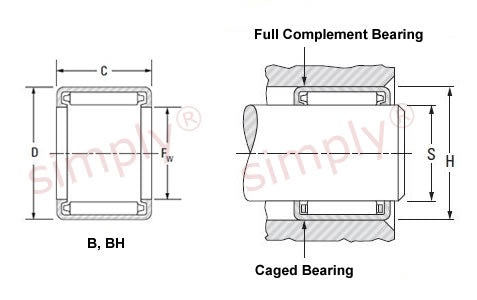

| Inside Diameter | = | 12.7mm = 0.5 inch |
| Outside Diameter | = | 17.46mm = 0.6875 inch |
| Width | = | 9.53mm = 0.375 inch |
| Dynamic load C | = | 6.85 kN |
| Static load Co | = | 10.1 kN |
| S max | = | 12.7mm = 0.5 inch |
| S min | = | 12.687mm = 0.4995 inch |
| H max | = | 17.475mm = 0.688 inch |
| H min | = | 17.45mm = 0.687 inch |
