SKU: B-2812

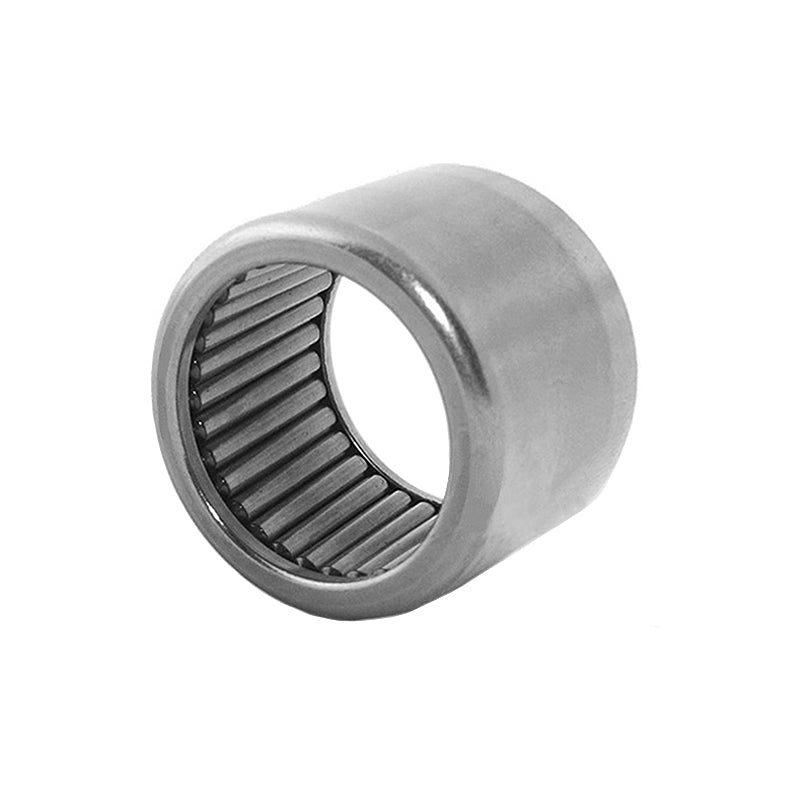

Major Branded B2812 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-3/4x2-1/8x3/4 inch
Major Branded B2812 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-3/4x2-1/8x3/4 inch
Regular price
€19,95
ex VAT
Regular price
Sale price
€19,95
ex VAT
In stock
Price Break
5+
€14,47
9+
€13,66
19+
€13,49
29+
€13,33
49+
€13,17
74+
€13,01
99+
€12,19
199+
€12,03
249+
€11,87
499+
€11,71
999+
€11,38
Quantity
Couldn't load pickup availability
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch

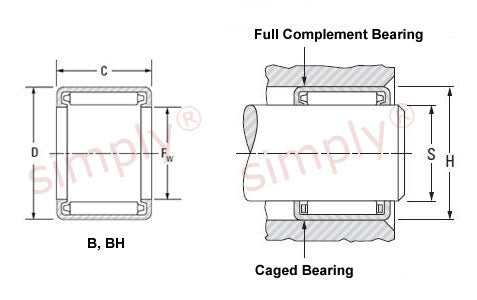

Technical
Technical
| Inside Diameter | 44.45mm = 1.75 inch |
|---|---|
| Outside Diameter | 53.98mm = 2.125 inch |
| Width | 19.05mm = 0.75 inch |
| Dynamic load C | 39.3 kN |
| Static load Co | 81.4 kN |
| S max | 44.45mm = 1.75 inch |
| S min | 44.437mm = 1.7495 inch |
| H max | 53.988mm = 2.1255 inch |
| H min | 53.962mm = 2.1245 inch |
