SKU: AXW20-MB

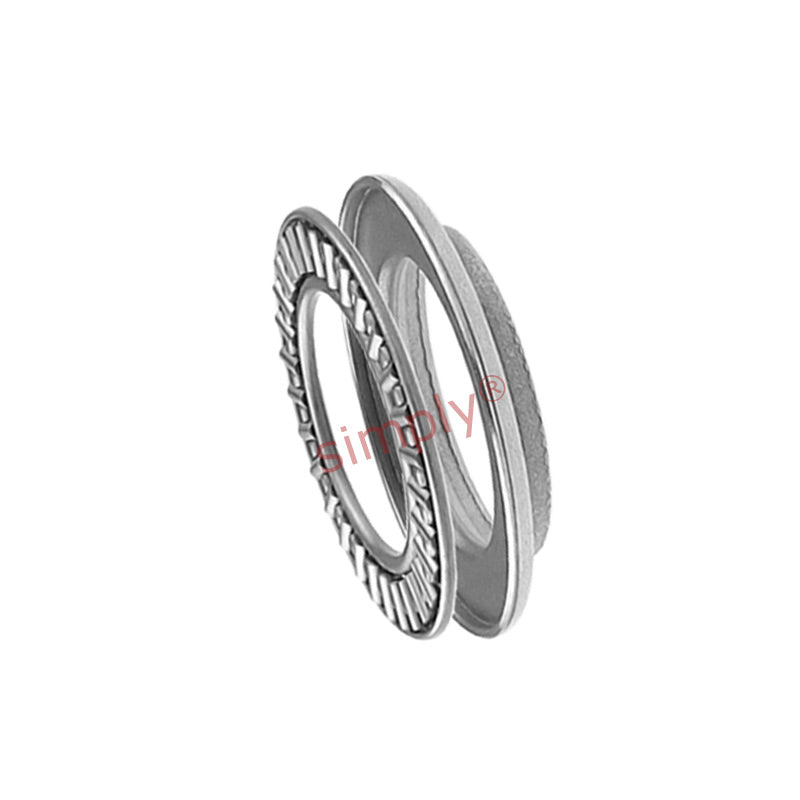

INA / SKF AXW20 Thrust Race with Centering Spigot 20x38x3.2mm
INA / SKF AXW20 Thrust Race with Centering Spigot 20x38x3.2mm
Regular price
€8,95
ex VAT
Regular price
Sale price
€8,95
ex VAT
In stock
Price Break
10+
€6,63
19+
€6,26
29+
€6,18
39+
€6,11
49+
€6,03
74+
€5,96
99+
€5,59
199+
€5,51
249+
€5,44
499+
€5,36
999+
€5,21
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 38mm
- Width:
- 3.2mm

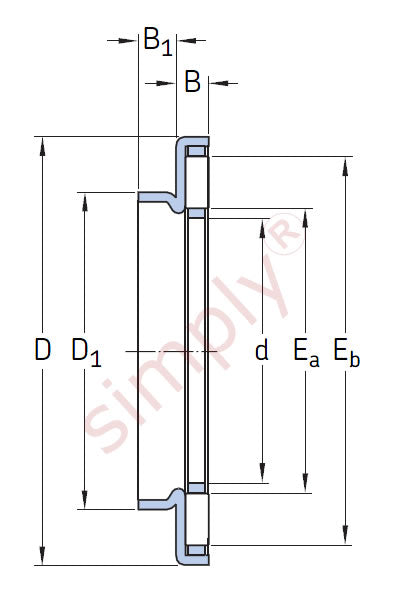

Technical
Technical
| Inside diameter | 20mm |
|---|---|
| Outside diameter | 38mm |
| B | 3.2mm |
| B1 | 3.5mm |
| D1 | 26mm |
| Ea | 22mm |
| Eb | 34mm |
| Weight | 14 g |
| Dynamic load | 13100 N |
| Static load | 46500 N |
| Fatigue load limit | 4750 N |
| Limiting speed | 10500 rpm |
| Reference speed | 4900 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS2035">Click Here AS2035 |
