SKU: AXK1111-NTN

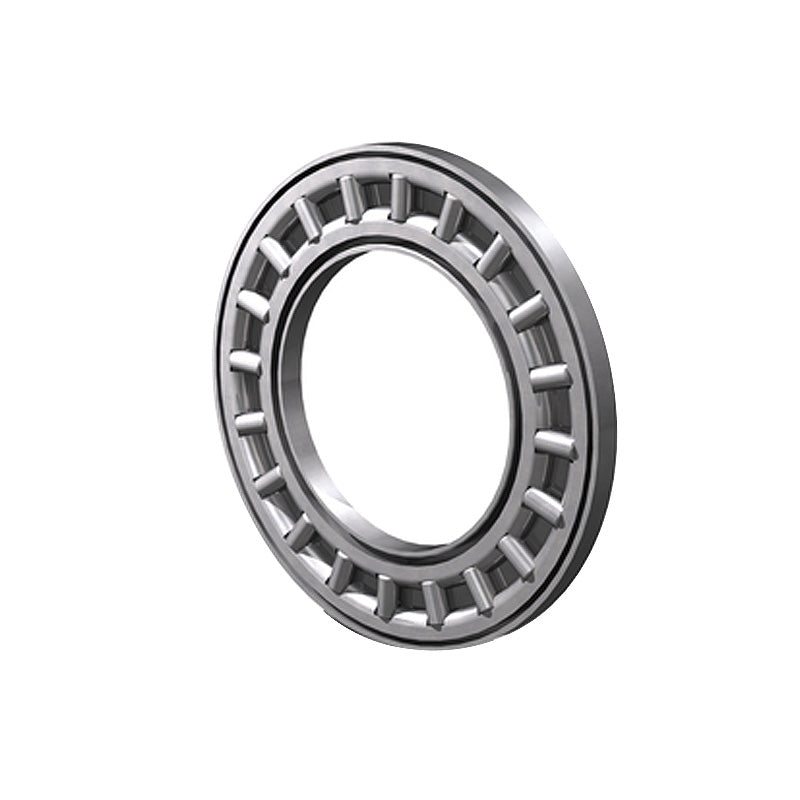

NTN AXK1111 Needle Roller Cage Only 55x78x3mm - Allow 2-3 Days
NTN AXK1111 Needle Roller Cage Only 55x78x3mm - Allow 2-3 Days
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
Low stock
Price Break
3+
€5,72
4+
€5,40
9+
€5,34
19+
€5,27
49+
€5,21
99+
€5,14
499+
€4,82
999+
€4,76
1999+
€4,69
2999+
€4,63
4999+
€4,50
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 78mm
- Width:
- 3mm
Technical
Technical
| Dc1 - Inside diameter | 55mm |
|---|---|
| Dc - Outside diameter | 78mm |
| Dw - Roller Width | 3mm |
| AS washer reference | AS1111 |
| WS inner ring reference | WS81111 |
| GS outer ring reference | GS81111 |
| Ea - Rollers reference outer diameter | 74.9mm |
| Eb - Rollers reference inner diameter | 61mm |
| Ca - Dynamic axial load rating | 38 kN |
| C0a - Static axial load rating | 186 kN |
| Cua - Limit axial load rating | 22.7 kN |
| Grease lubrication limit speed | 900 tr/min |
| Oil lubrication limit speed | 3500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
