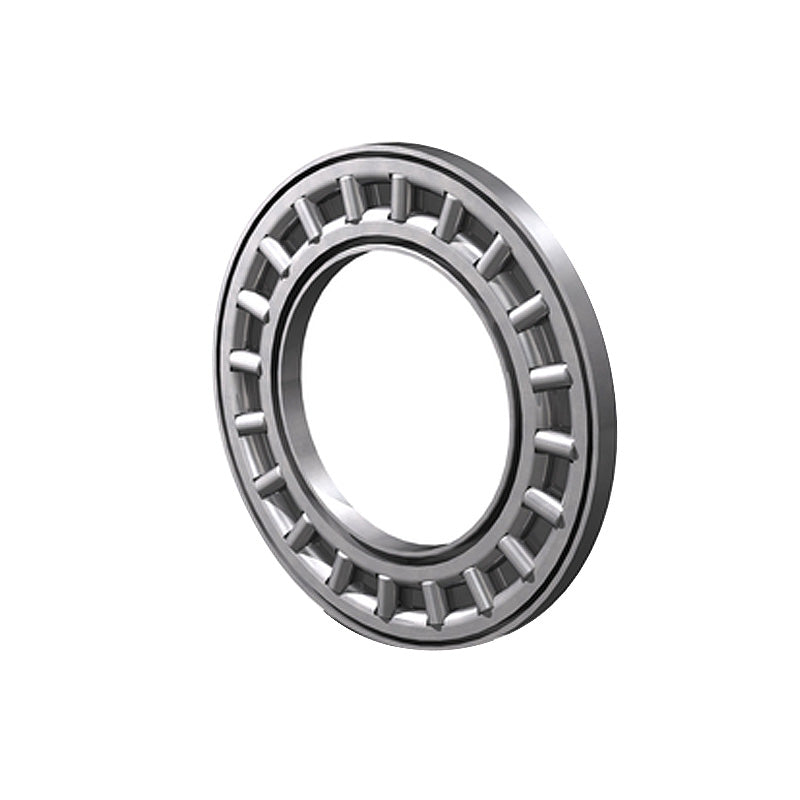

• NTN AXK1104 Needle Roller Cage Only 20x35x2mm - Allow 2-3 Days
1 1

SKU: AXK1104-NTN

NTN AXK1104 Needle Roller Cage Only 20x35x2mm - Allow 2-3 Days

NTN AXK1104 Needle Roller Cage Only 20x35x2mm - Allow 2-3 Days
€5,95 ex VAT
€5,95 ex VAT
Sale Sold out

Low stock

Price Break
3+ €3,78
4+ €3,57
9+ €3,53
19+ €3,49
49+ €3,44
99+ €3,40
499+ €3,19
999+ €3,15
1999+ €3,10
2999+ €3,06
4999+ €2,98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5Q5JT76PDO
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
35mm
Width:
2mm
Technical
Dc1 - Inside diameter 20mm
Dc - Outside diameter 35mm
Dw - Roller Width 2mm
AS washer reference AS1104
WS inner ring reference WS81104
GS outer ring reference GS81104
Ea - Rollers reference outer diameter 31.3mm
Eb - Rollers reference inner diameter 21.3mm
Ca - Dynamic axial load rating 13.2 kN
C0a - Static axial load rating 46.5 kN
Cua - Limit axial load rating 5.65 kN
Grease lubrication limit speed 2100 tr/min
Oil lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
tmax - Maximum operating temperature +120 Deg C
