SKU: AL16M10SSLH-CHI

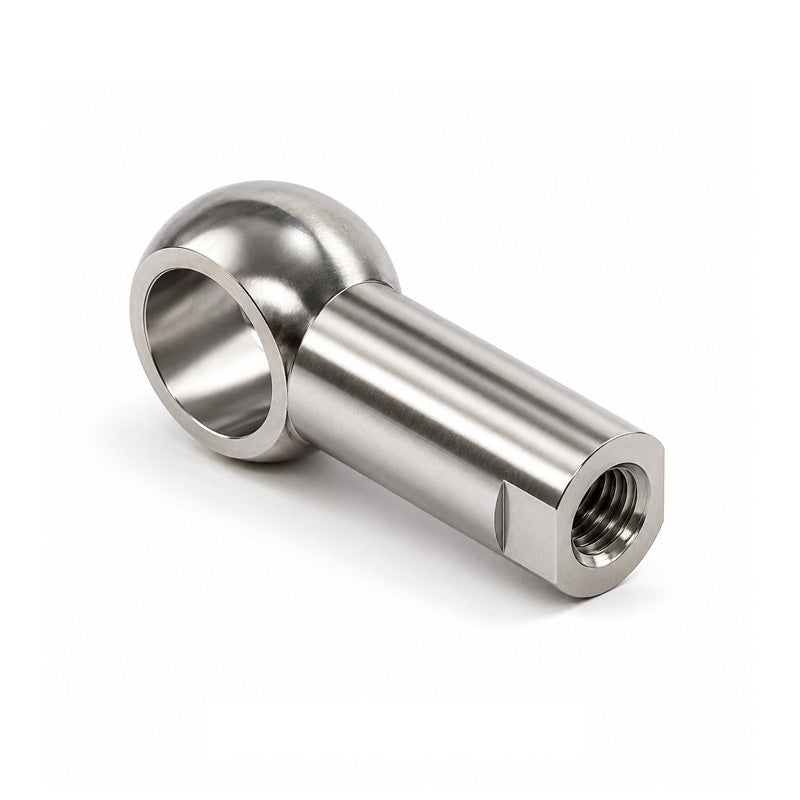

Chiavette AL16SS Left Hand Stainless Steel Long Ball Socket with Internal Snap Ring 16mm Ball Diameter M10 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Chiavette Extra Long Stainless Steel Ball Sockets: Ball sockets are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball sockets are intended to be used alongside a compatible ball stud that when combined will produce a ball joint. These ball sockets have been designed to be extra long which may be better suited to specific applications than the standard length ball sockets. Crafted with durability in mind, these ball sockets feature an internal snap ring for secure attachment, ensuring seamless integration into various mechanical systems. Crafted from high-quality stainless steel, these ball joints are inherently resistant to corrosion, rust, and chemical damage, making them ideal for use in marine environments, chemical processing plants, and other corrosive settings. These ball sockets do NOT feature external holes for a safety clip to be mounted and therefore these ball sockets do NOT feature an integrated safety clip.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M10
- Thread Direction:
- Left Hand
- Outside Diameter:
- 16mm
- Style:
- Extra Long
- Type:
- Without Safety Clip
Technical
| --- | Dimensions |
|---|---|
| Thread | Left Hand |
| d1 | 16mm |
| d2 | M10 |
| a | 45mm (+/-0.3) |
| d3 | 16mm (+/-0.5) |
| d4 | 24mm (+/-0.5) |
| e | 30.5mm |
| l1 | 35.5mm (+/-0.3) |
| h2 | 1.15mm (+/-0.5) |
| sw1 | 13mm |
| Weight | 0.067 kg |
