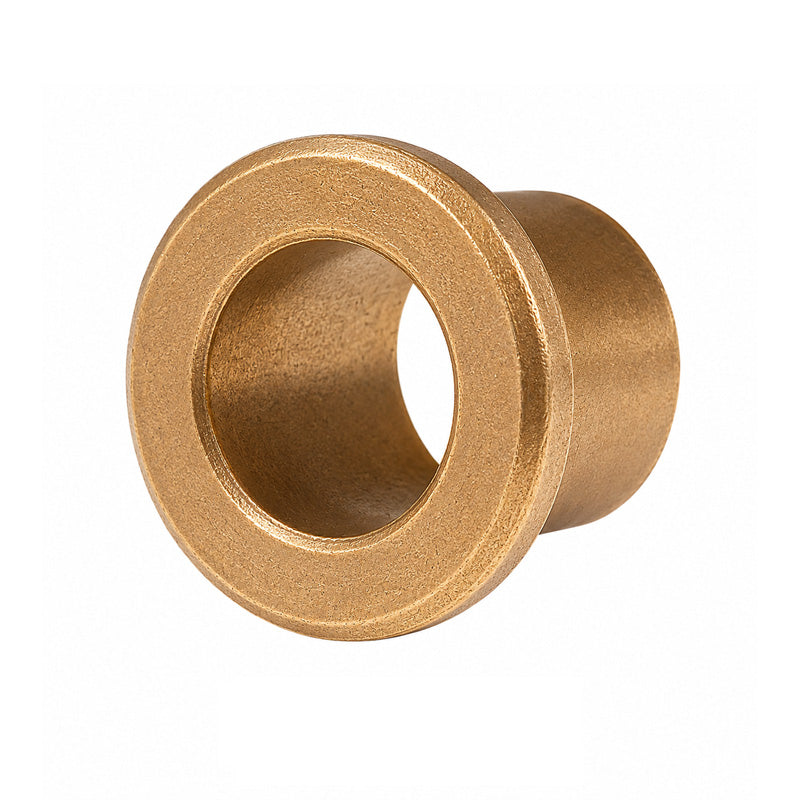

AJ2026-24 Oil Filled Bronze Flanged Bush 1-1/4x1-5/8x1-1/2 inch

Oil Filled Bronze Bushes: Made in a variety of styles from bronze, graphite and several other metallic powders formed to shape by the sintering process and then soaked in oil. These simple bush-style bearings have an extended range of applications but are particularly suited to function in the following conditions; extreme high/low temperatures¹, high/low speed applications, corrosive environments, low maintenance applications etc.
¹ These bushes are generally implanted with grease which has a temperature range of -20 to +90 deg C. Contact our Customer Support Team for more options to compensate for medium and wide range temperatures.
Benefits: Inexpensive, noiseless operation, self-lubrication, low maintenance costs.

Brand / Quality:

Oilite - High Quality

Inside Diameter:

31.75mm = 1.25 (1-1/4) inch

Outside Diameter:

41.28mm = 1.625 (1-5/8) inch

Length:

38.1mm = 1.5 (1-1/2) inch
