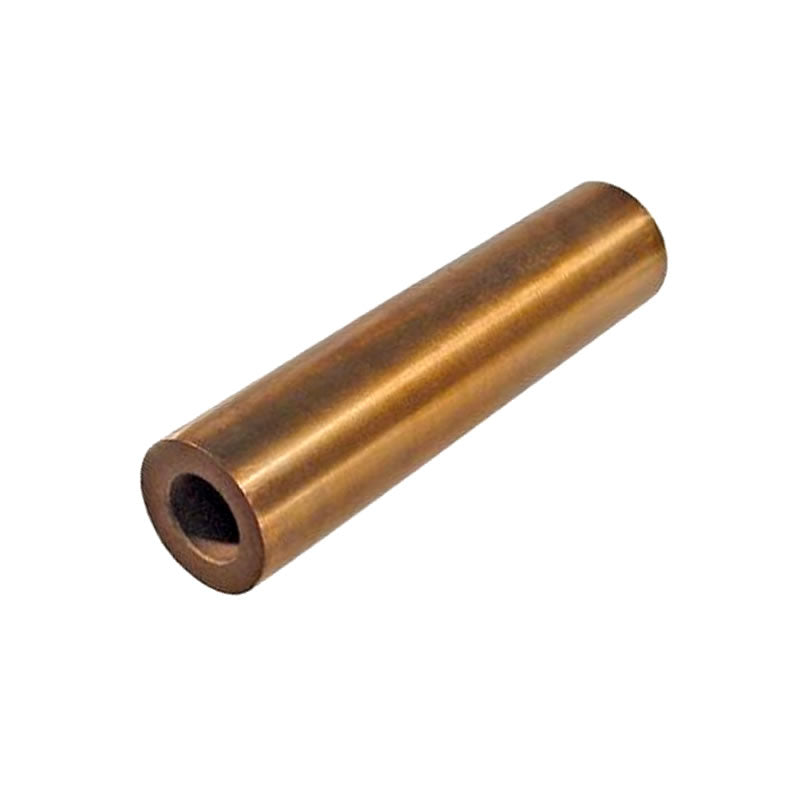

AC.344668.IN Oil Filled Bronze Cored Round Plain Bush Bar 2-1/8x2-7/8x6-1/2 inch

Oil Filled Bronze Cored Bars: Made in nominal 108mm (4-1/4") lengths from bronze, graphite and several other metallic powders formed to shape by the sintering process and then soaked in oil. The cored bar permits the end user to machine bushes or profiles to suit their own needs whilst still offering the extended range of applications that the material is particularly suited to. Applications and conditions such as: extreme high/low temperatures¹, high/low speed applications, corrosive environments, low maintenance applications etc.
¹ These bushes are generally implanted with grease which has a temperature range of -20 to +90 deg C. Contact our Customer Support Team for more options to compensate for medium and wide range temperatures.
Benefits: Inexpensive, noiseless operation, self-lubrication, low maintenance costs.
Please note that the given sizes of this product are the finished sizes after machining. This will not be delivered with the finished sizes.

Brand / Quality:

Oilite - High Quality

Inside Diameter:

53.98mm = 2.125 (2-1/8) inch

Outside Diameter:

73.03mm = 2.875 (2-7/8) inch

Length:

165.1mm = 6.5 (6-1/2) inch
