SKU: A500FM-2528-21

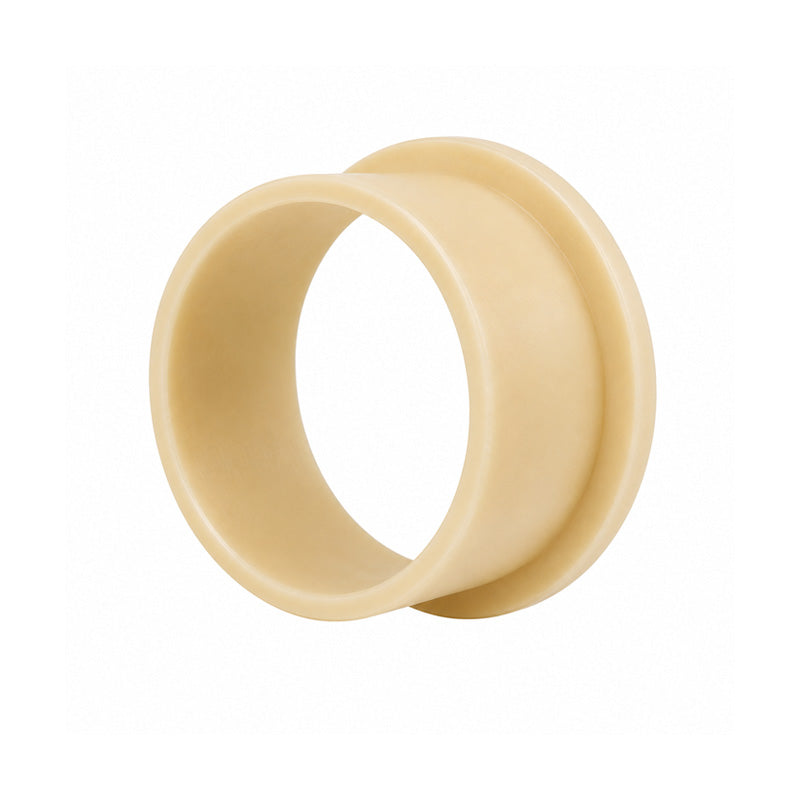

Igus Iglidur A500FM-2528-21 Metric Flanged Polymer Bush FDA Compliant 25x28x21.5mm
Igus Iglidur A500FM-2528-21 Metric Flanged Polymer Bush FDA Compliant 25x28x21.5mm
Regular price
€23,95
ex VAT
Regular price
Sale price
€23,95
ex VAT
In stock
Price Break
10+
€17,55
19+
€16,56
29+
€16,37
39+
€16,17
49+
€15,97
74+
€15,77
99+
€14,79
199+
€14,59
249+
€14,39
499+
€14,20
999+
€13,80
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Igus iglidur A500 Series Flanged Polymer Bush Bearing: These sleeve bearings are suitable for direct contact with foodstuffs. They have exceptionally good chemical resistance and are suitable for heavy-duty use in machinery for the food industry. Although the iglidur A500 is an extremely soft material, it has excellent compressive strength even at high temperatures.
Benefits: Very low moisture absorption, good wear resistance under water, very high media resistance, resistant to edge pressure, resistant to shocks and impacts, resistant to high loads, FDA-compliant
Benefits: Very low moisture absorption, good wear resistance under water, very high media resistance, resistant to edge pressure, resistant to shocks and impacts, resistant to high loads, FDA-compliant
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 28mm
- Width:
- 21.5mm

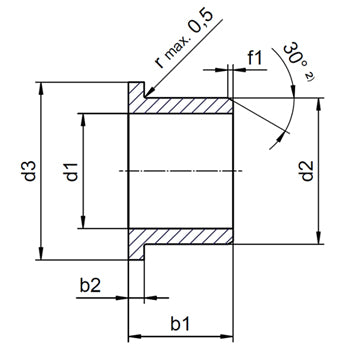

Technical
Technical
| d1 | 25mm |
|---|---|
| d2 | 28mm |
| d3 | 35mm |
| b1 | 21.5mm |
| b2 | 1.5mm |
| f1 | 0.8mm |
| Bevel Angle | 30 deg |
