SKU: 89452M.MB

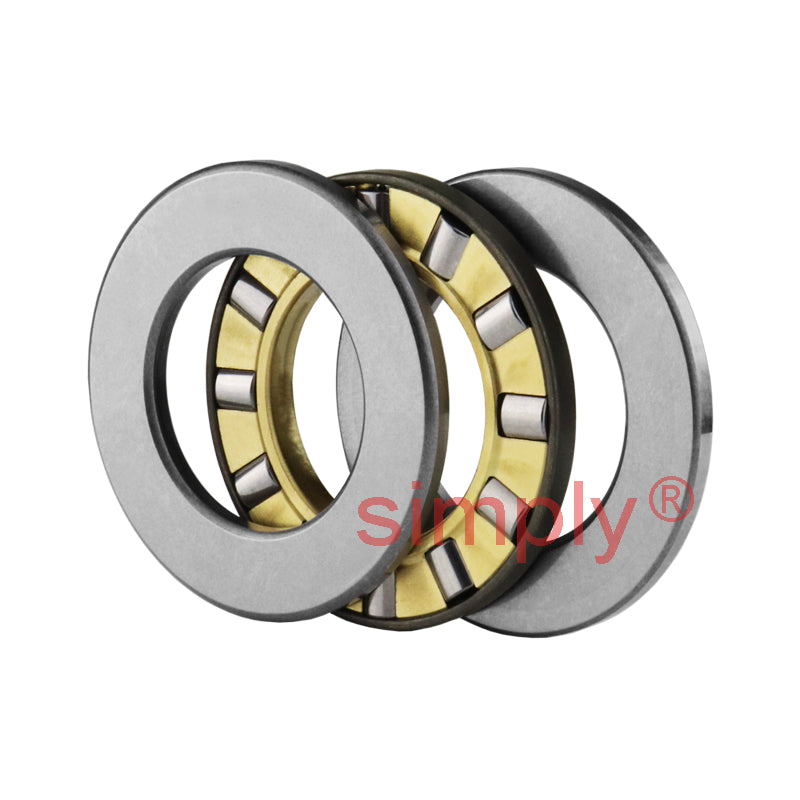

Major Brand 89452M Cylindrical Roller Thrust Bearing with Brass Cage 260x480x132mm
Major Brand 89452M Cylindrical Roller Thrust Bearing with Brass Cage 260x480x132mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 480mm
- Width:
- 132mm
Technical
Technical
| d | 260mm |
|---|---|
| D | 480mm |
| H | 132mm |
| Dynamic load C | 2850 kN |
| Static load Co | 14300 kN |
| Fatigue load limit Pu | 1080 kN |
| Min load factor A | 16 |
| Reference speed | 300 rpm |
| Limiting speed | 630 rpm |
| Cage reference | K89452M |
| Weight | 114 kg |
