SKU: 87508-FAG

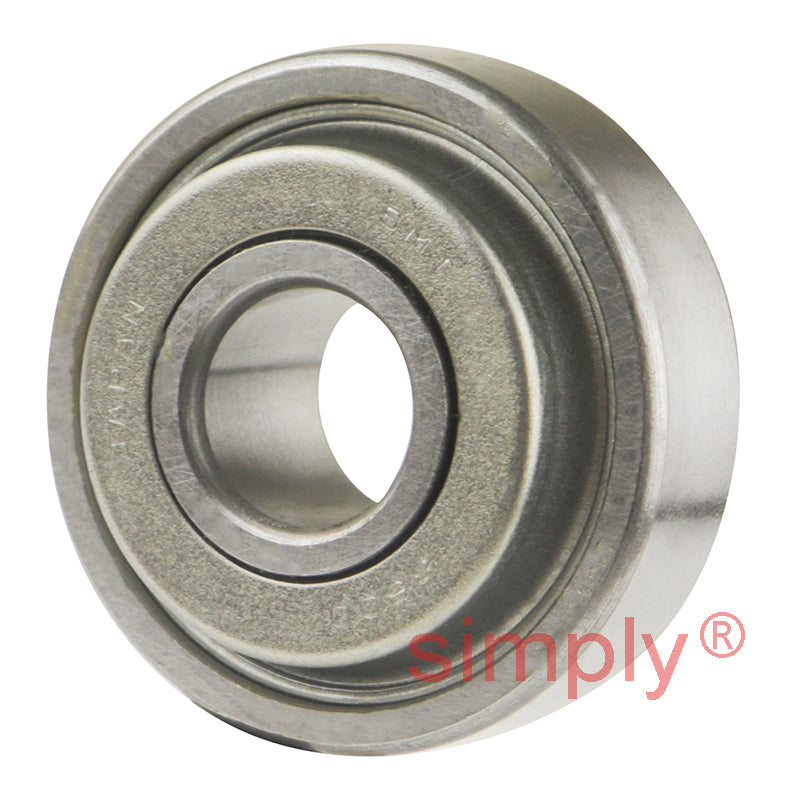

FAG 87508 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 40x80x24mm
FAG 87508 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 40x80x24mm
Out of stock
Description
Description
|
Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 24mm

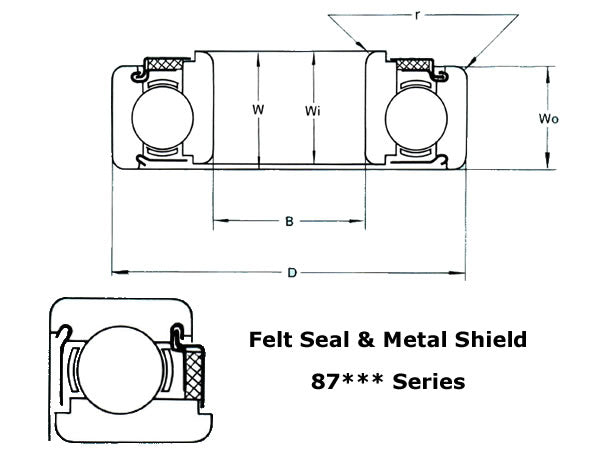

Technical
Technical
| B | 40mm = 1.5748 inch |
|---|---|
| D | 80mm = 3.1496 inch |
| W | 24mm = 0.945 inch |
| Tolerance +0.0000 to minus | 0.0005 inch |
| Wo | 0.827 inch |
| Wi | 0.945 inch |
| r | 0.04 inch |
| No. of balls | 9 |
| Ball diameter | 15/32 inch |
| Static load | 2284 kN |
| Dynamic load | 1597 kN |
| Weight | 0.438 kg |
