SKU: 87507-FAG

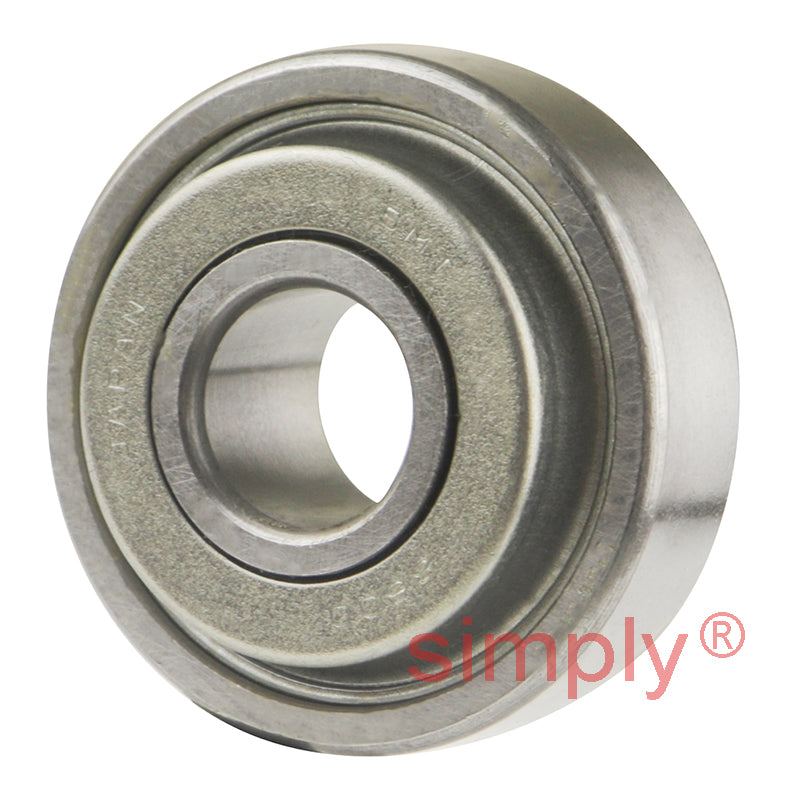

FAG 87507 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 35x72x21.03mm
FAG 87507 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 35x72x21.03mm
Out of stock
Description
Description
|
Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 21.03mm = 0.828 (53/64) inch
Technical
Technical
| B | 35mm = 1.378 inch |
|---|---|
| D | 72mm = 2.8346 inch |
| W | 21.03mm = 0.827 inch |
| Tolerance +0.0000 to minus | 0.0005 inch |
| Wo | 0.669 inch |
| Wi | 0.787 inch |
| r | 0.04 inch |
| No. of balls | 9 |
| Ball diameter | 7/16 inch |
| Static load | 2009 kN |
| Dynamic load | 1393 kN |
| Weight | 0.314 kg |
