SKU: 87504-FAG

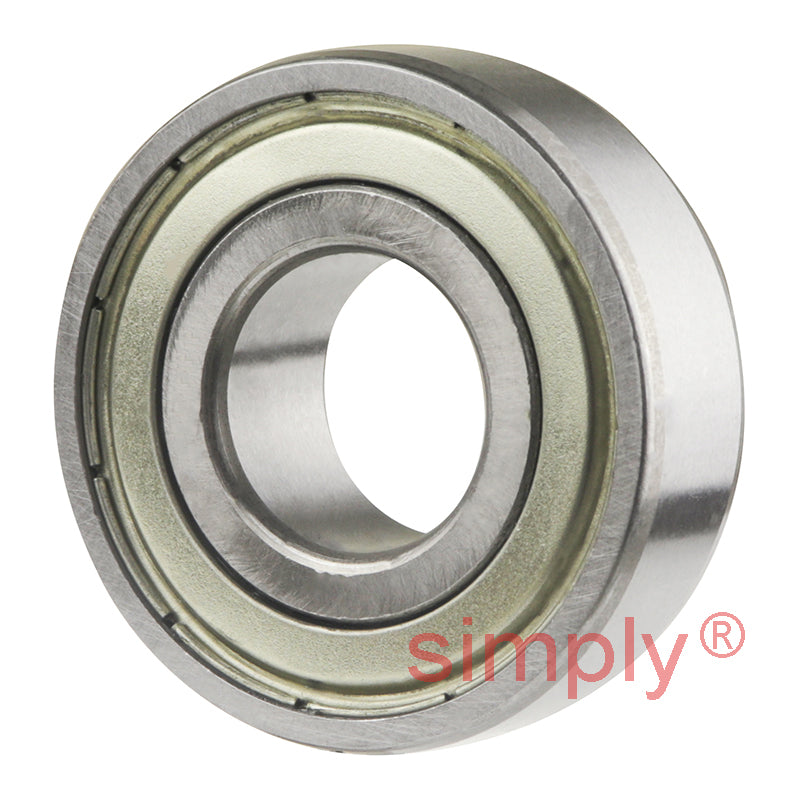

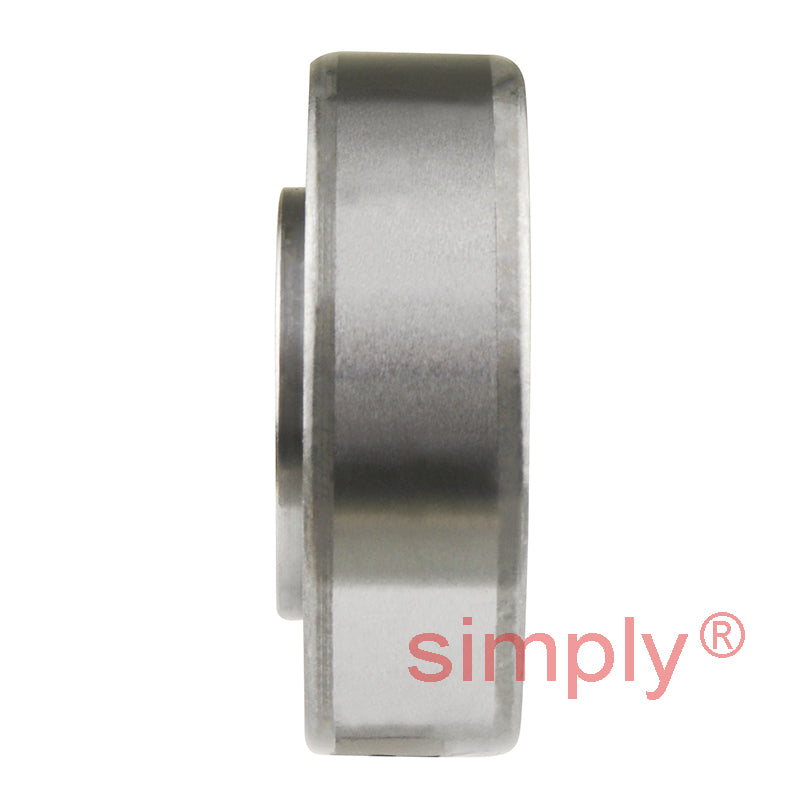

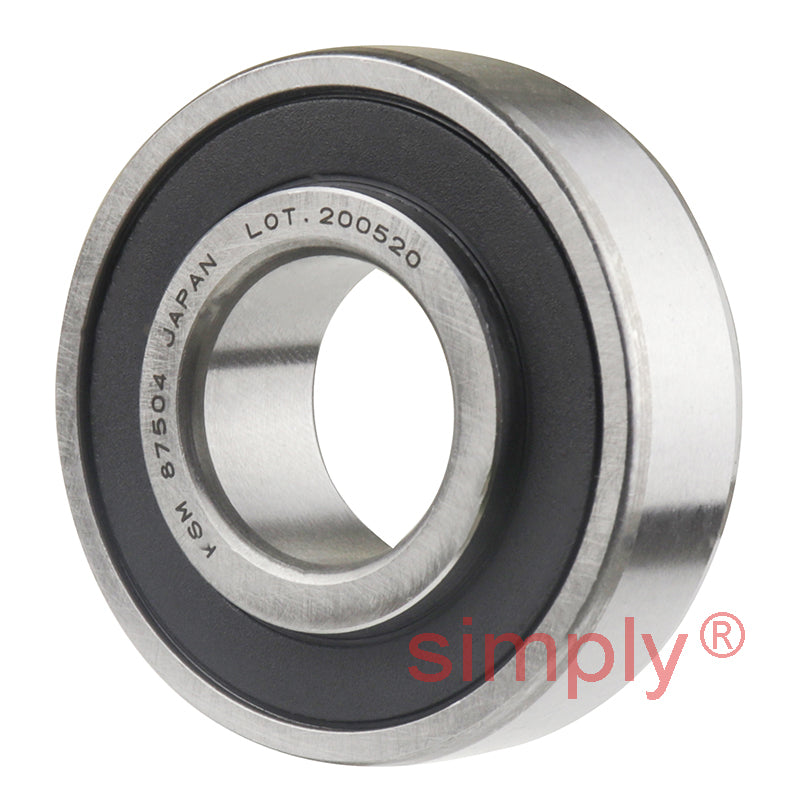

FAG 87504 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 20x47x15.88mm
FAG 87504 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 20x47x15.88mm
Out of stock
Description
Description
|
Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| B | 20mm = 0.7874 inch |
|---|---|
| D | 47mm = 1.8504 inch |
| W | 15.88mm = 0.625 inch |
| Tolerance +0.0000 to minus | 0.0004 inch |
| Wo | 0.551 inch |
| Wi | 0.6 inch |
| r | 0.04 inch |
| No. of balls | 8 |
| Ball diameter | 5/16 inch |
| Static load | 1005 kN |
| Dynamic load | 630 kN |
| Weight | 0.11 kg |
