SKU: 868D/854-TIM

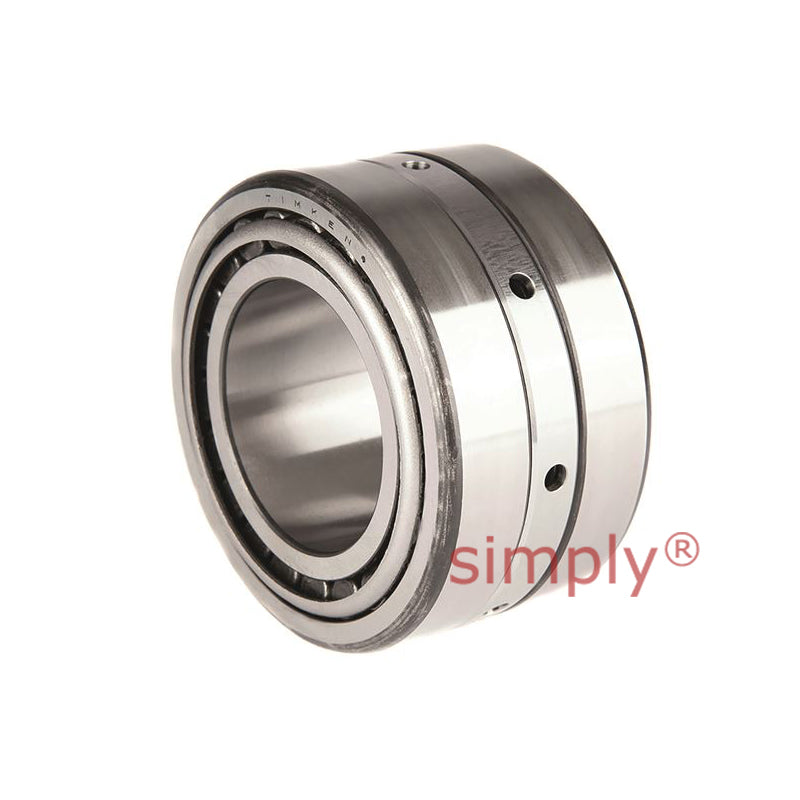

Timken 868D/854 TDI Double Inner Race Taper Roller Bearing 4x7.5x4.625x5 inch
Timken 868D/854 TDI Double Inner Race Taper Roller Bearing 4x7.5x4.625x5 inch
Out of stock
Description
Description

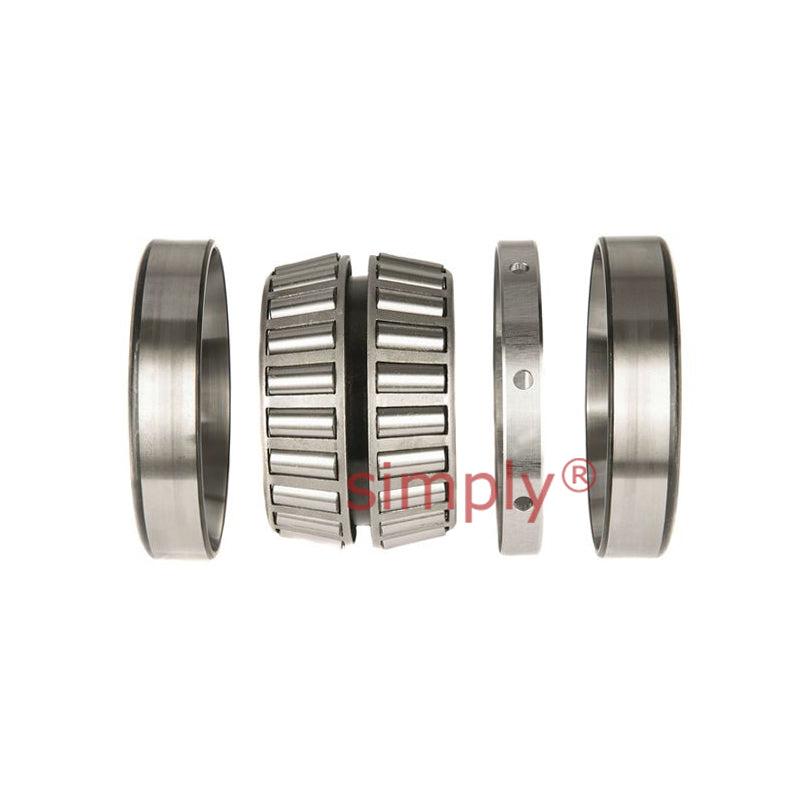

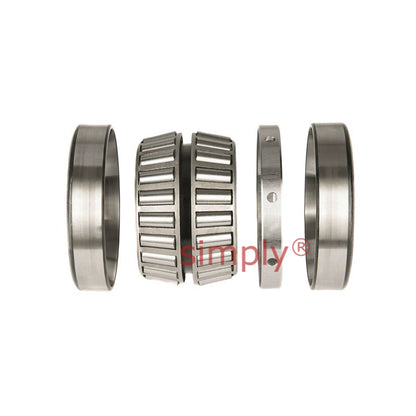

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 190.5mm = 7.5 (7-1/2) inch
- Width:
- 117.48mm = 4.625 (4-5/8) inch
Technical
Technical
| d | 101.6mm = 4 inch |
|---|---|
| D | 190.5mm = 7.5 inch |
| T | 117.475mm = 4.625 inch |
| C | 127mm = 5 inch |
| Dynamic (1) C1 | 738000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.02 |
| Factors (5) Y2 | 3 |
| Dynamic (2) C90 | 110000N |
| Dynamic (2) Ca90 | 63000N |
| Dynamic (2) C90(2) | 191000N |
| Factors (5) K | 1.74 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 116mm = 4.57 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 170mm = 6.69 inch |
| G1 | 264 |
| G2 | 44.9 |
| Cg | 0.1072 |
