SKU: 812/950M.MB

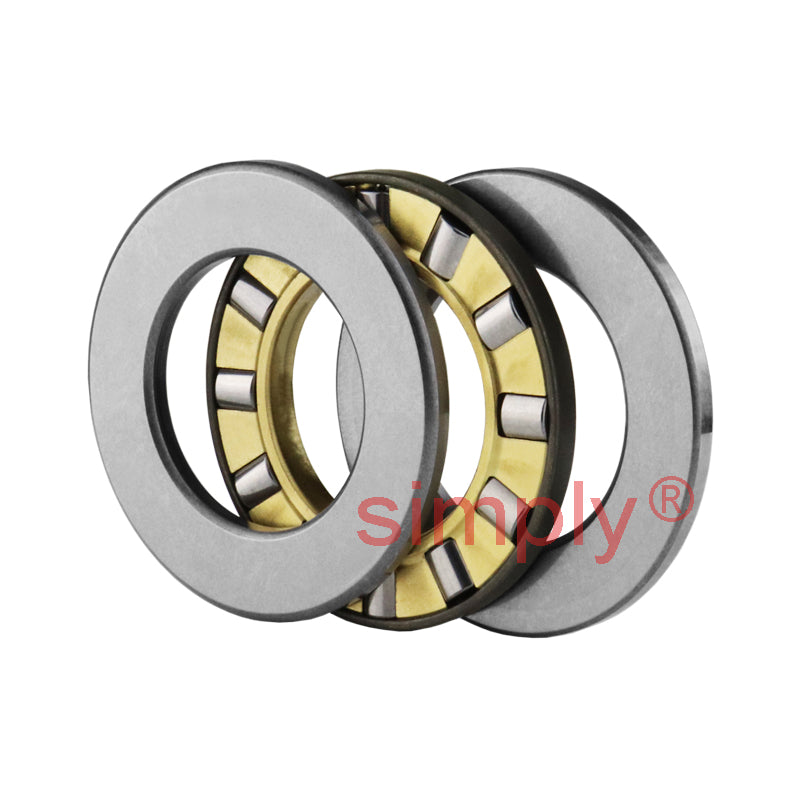

Major Brand 812/950M Cylindrical Roller Thrust Bearing with Brass Cage 950x1250x236mm
Major Brand 812/950M Cylindrical Roller Thrust Bearing with Brass Cage 950x1250x236mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 950mm
- Outside Diameter:
- 1250mm
- Width:
- 236mm
Technical
Technical
| d | 950mm |
|---|---|
| D | 1250mm |
| H | 236mm |
| Dynamic load C | 10000 kN |
| Static load Co | 58500 kN |
| Fatigue load limit Pu | 3150 kN |
| Min load factor A | 270 |
| Reference speed | 90 rpm |
| Limiting speed | 180 rpm |
| Weight | 805 kg |
