• NTN 81104T2 Cylindrical Roller Thrust Bearing with Cage 20x35x10mm - Allow 2-3 Days
1 1

SKU: 81104T2-NTN

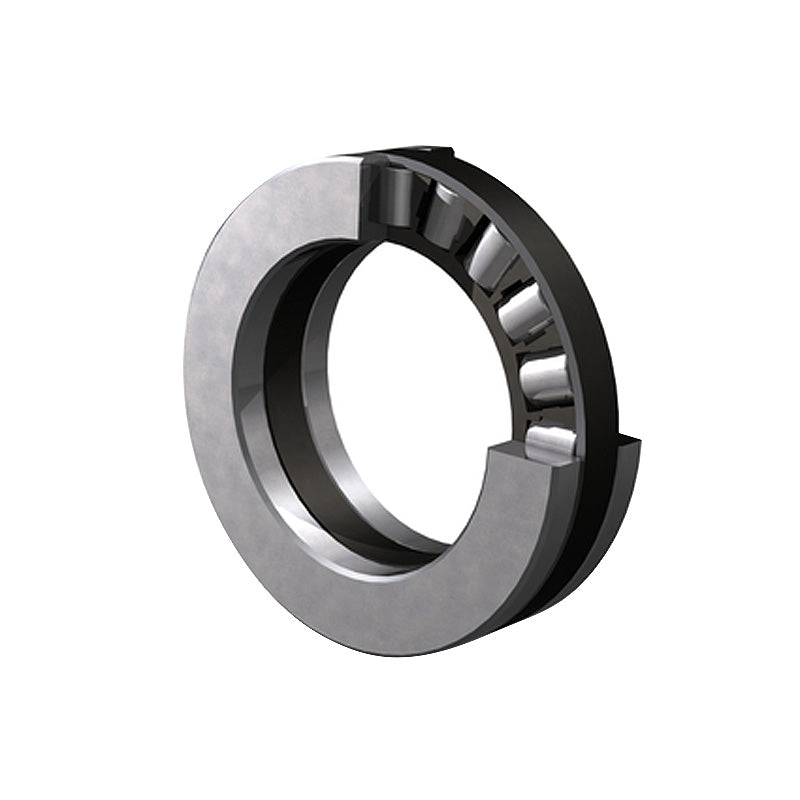

NTN 81104T2 Cylindrical Roller Thrust Bearing with Cage 20x35x10mm - Allow 2-3 Days

NTN 81104T2 Cylindrical Roller Thrust Bearing with Cage 20x35x10mm - Allow 2-3 Days
€24,95 ex VAT
€24,95 ex VAT
Sale Sold out

Low stock

Price Break
3+ €18,56
4+ €17,51
9+ €17,31
19+ €17,10
49+ €16,89
99+ €16,68
499+ €15,64
999+ €15,43
1999+ €15,22
2999+ €15,01
4999+ €14,60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3IUWJ5QIPM
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
35mm
Width:
10mm
Technical
d - Bore diameter of support washer inner ring (WS) 20mm
D - Outside diameter of support washer outer ring (GS) 35mm
d1 - External diameter of support washer inner ring (WS) 35mm
D1 - Bore diameter bearing washer outer ring (GS) 21mm
T - Thrust bearing width 10mm
Dw - Rolling element diameter 4.5mm
Dc1 - Roller cage bore diameter 20mm
Dc - Roller cage outer diameter 35mm
rs - Minimum fillet radius 0.3mm
Cage assembly reference K81104T2
Bearing ring (inner ring WS) WS81104
Bearing ring (outer ring GS) GS81104
Ea - Roller reference outer diameter 32.3mm
Eb - Roller reference inner diameter 22.4mm
Ca - Dynamic axial load rating 20.2 kN
C0a - Static axial load rating 46.5 kN
Cua - Limit axial load rating 5.65 kN
N - Grease lubrication limit speed 2100 tr/min
N - Oil lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Minimum inner ring shoulder diameter (WS) 32mm
Db max - Maximum outer ring shoulder diameter (GS) 23mm
ras max - Maximum shaft & housing fillet radius 0.3mm
