SKU: 81103.MB

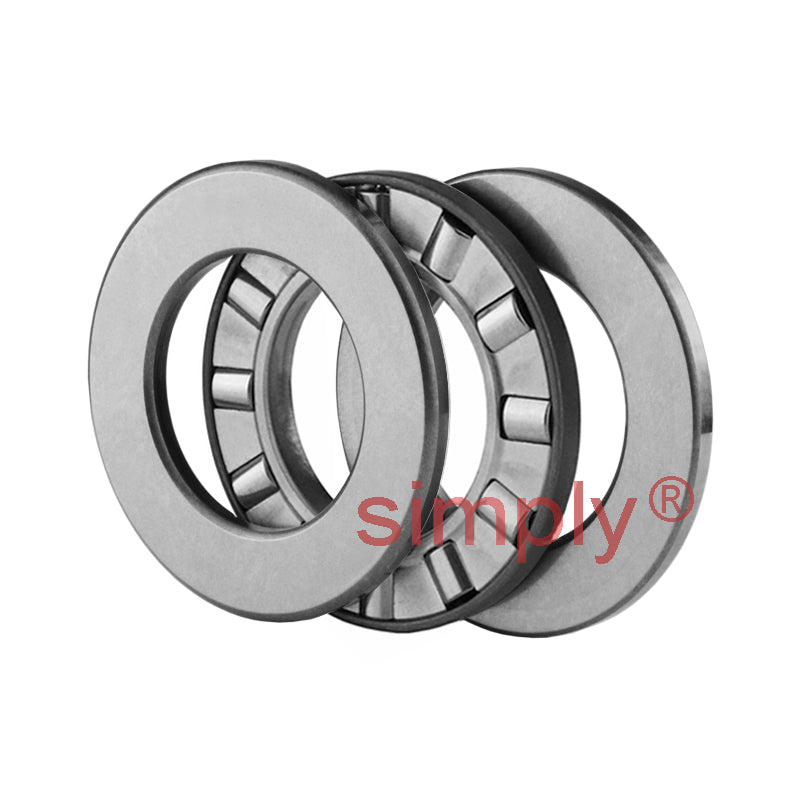

Major Brand 81103 Cylindrical Roller Thrust Bearing with Steel Cage 17x30x9mm
Major Brand 81103 Cylindrical Roller Thrust Bearing with Steel Cage 17x30x9mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| H | 9mm |
| Dynamic load C | 12.2 kN |
| Static load Co | 31.5 kN |
| Fatigue load limit Pu | 2.85 kN |
| Min load factor A | 0 |
| Reference speed | 4300 rpm |
| Limiting speed | 8500 rpm |
| Cage reference | Weight |
| 0.027 kg | N/A |
