SKU: 811/750M.MB

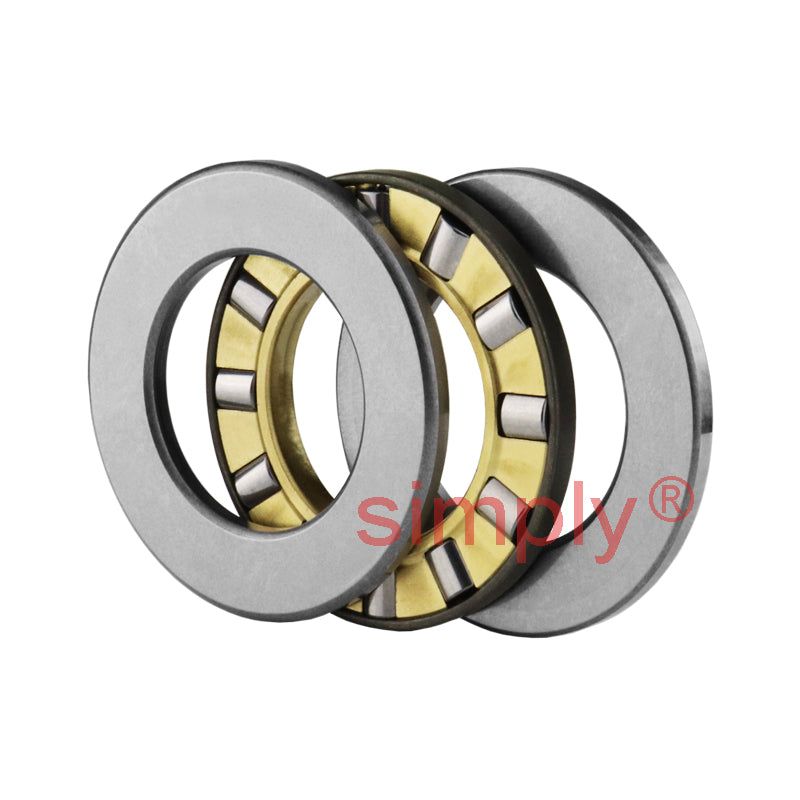

Major Brand 811/750M Cylindrical Roller Thrust Bearing with Brass Cage 750x900x120mm
Major Brand 811/750M Cylindrical Roller Thrust Bearing with Brass Cage 750x900x120mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 750mm
- Outside Diameter:
- 900mm
- Width:
- 120mm
Technical
Technical
| d | 750mm |
|---|---|
| D | 900mm |
| H | 120mm |
| Dynamic load C | 3250 kN |
| Static load Co | 21200 kN |
| Fatigue load limit Pu | 1250 kN |
| Min load factor A | 36 |
| Reference speed | 170 rpm |
| Limiting speed | 340 rpm |
| Weight | 155 kg |
