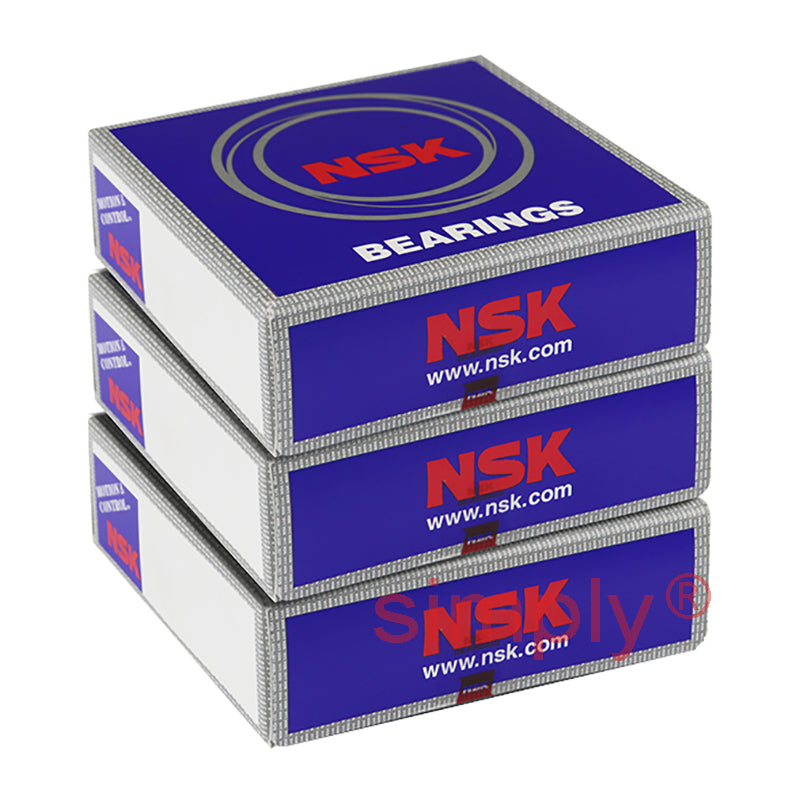

• NSK 7911A5TRDUDMP3 Super Precision Angular Contact Spindle Bearing 55x80x13mm (Set of 3)
1 1

SKU: 7911A5TRDUDMP3-NSK

NSK 7911A5TRDUDMP3 Super Precision Angular Contact Spindle Bearing 55x80x13mm (Set of 3)

NSK 7911A5TRDUDMP3 Super Precision Angular Contact Spindle Bearing 55x80x13mm (Set of 3)
€640,95 ex VAT
€640,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €477,53
5+ €450,70
10+ €445,34
25+ €439,97
49+ €434,61
74+ €429,24
99+ €402,41
199+ €397,05
249+ €391,68
499+ €386,32
999+ €375,59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
55mm
Outside Diameter:
80mm
Width:
13mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 55mm
D 80mm
B 13mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 19Kn
C<sub>or</sub> 16.8kN
Axial load Kn 12.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 22.2mm
Max speed in grease 14900 rpm
Max speed in oil 22300 rpm
--- Fitting dimensions
d<sub>a min</sub> 61mm
D<sub>a max</sub> 74mm
D<sub>b max</sub> 75mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.552kg
