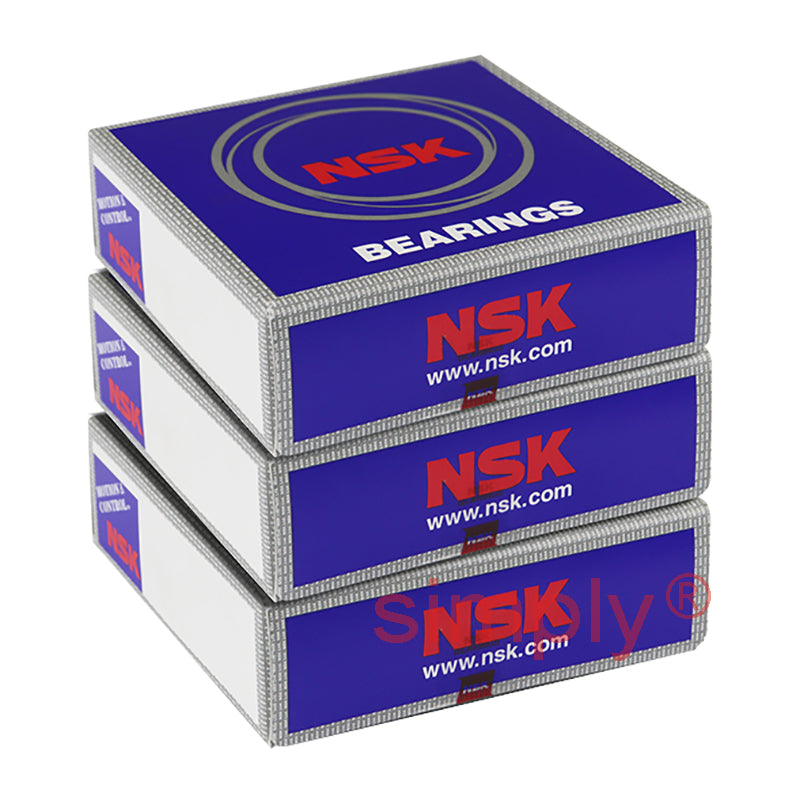

• NSK 7908CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 3)
1 1

SKU: 7908CTRDUDLP3-NSK

NSK 7908CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 3)

NSK 7908CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 3)
€477,95 ex VAT
€477,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €355,86
5+ €335,87
10+ €331,87
25+ €327,87
49+ €323,87
74+ €319,87
99+ €299,88
199+ €295,88
249+ €291,88
499+ €287,88
999+ €279,89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
12mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 40mm
D 62mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 15.9Kn
C<sub>or</sub> 11.7kN
Axial load Kn 8.4 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 12.8mm
Max speed in grease 22600 rpm
Max speed in oil 34400 rpm
--- Fitting dimensions
d<sub>a min</sub> 45mm
D<sub>a max</sub> 57mm
D<sub>b max</sub> 59.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.327kg
