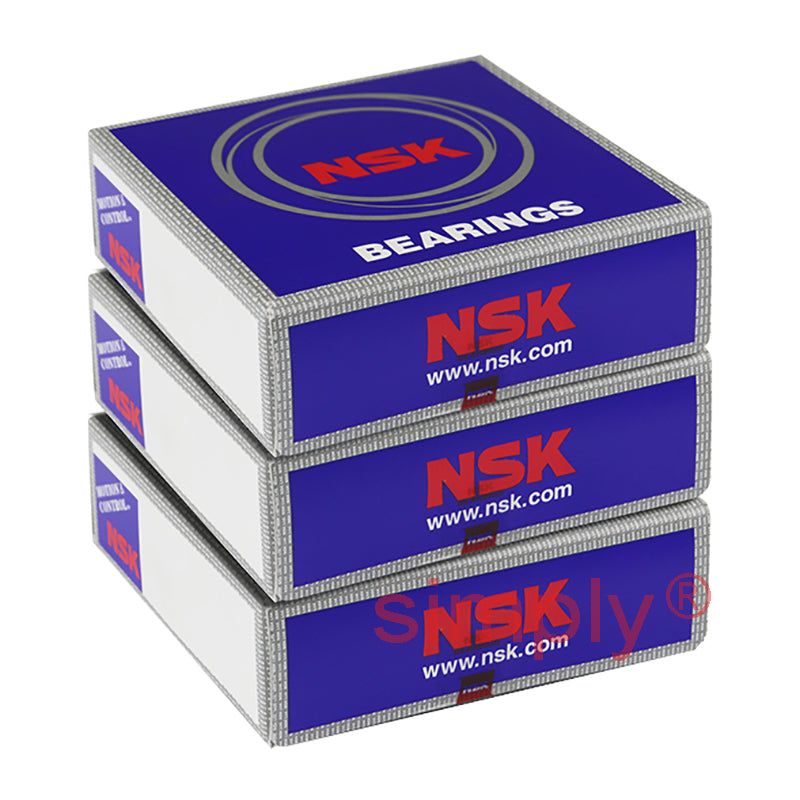

• NSK 7908A5TRV1VDUDLP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm (Set of 3)
1 1

SKU: 7908A5TRV1VDUDLP3-NSK

NSK 7908A5TRV1VDUDLP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm (Set of 3)

NSK 7908A5TRV1VDUDLP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm (Set of 3)
€619,95 ex VAT
€619,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €461,83
5+ €435,88
10+ €430,70
25+ €425,51
49+ €420,32
74+ €415,13
99+ €389,18
199+ €383,99
249+ €378,80
499+ €373,62
999+ €363,24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
12mm
Seals / Shields:
Rubber Sealed
Style:
Universal Matched Triple Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 40mm
D 62mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 15Kn
C<sub>or</sub> 11.2kN
Axial load Kn 8.9 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 17.9mm
Max speed in grease 19700 rpm
Max speed in oil 29500 rpm
--- Fitting dimensions
d<sub>a min</sub> 45mm
D<sub>a max</sub> 57mm
D<sub>b max</sub> 59.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.33kg
