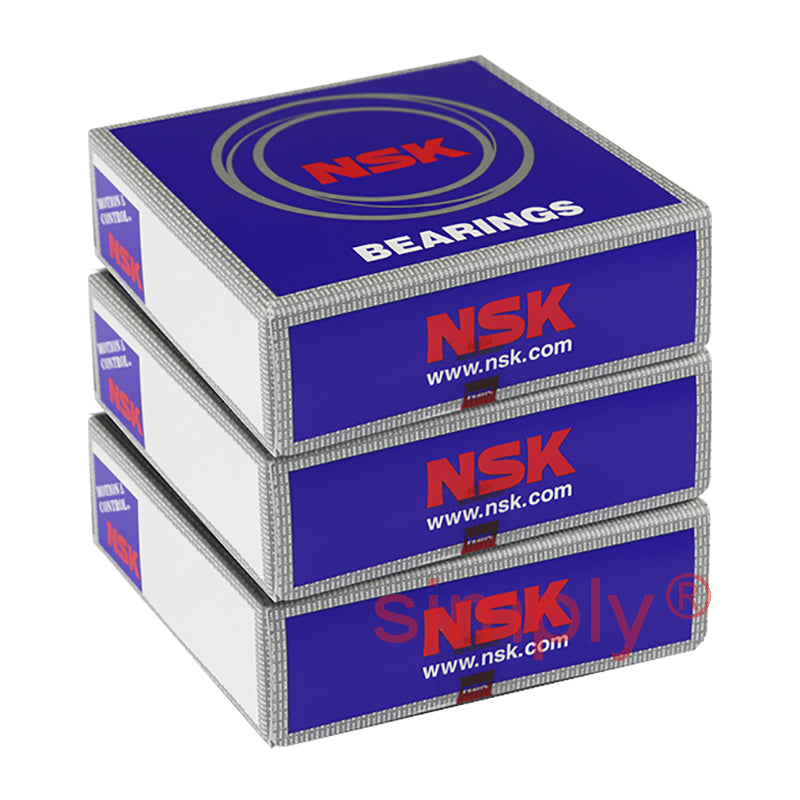

• NSK 7907CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 3)
1 1

SKU: 7907CTRDUDLP3-NSK

NSK 7907CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 3)

NSK 7907CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 3)
€403,95 ex VAT
€403,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €300,91
5+ €284,00
10+ €280,62
25+ €277,24
49+ €273,86
74+ €270,48
99+ €253,58
199+ €250,19
249+ €246,81
499+ €243,43
999+ €236,67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
55mm
Width:
10mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12.7Kn
C<sub>or</sub> 9.15kN
Axial load Kn 6.6 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 11mm
Max speed in grease 25600 rpm
Max speed in oil 38900 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.222kg
