SKU: 7907CSN24TRSULP3-RHP

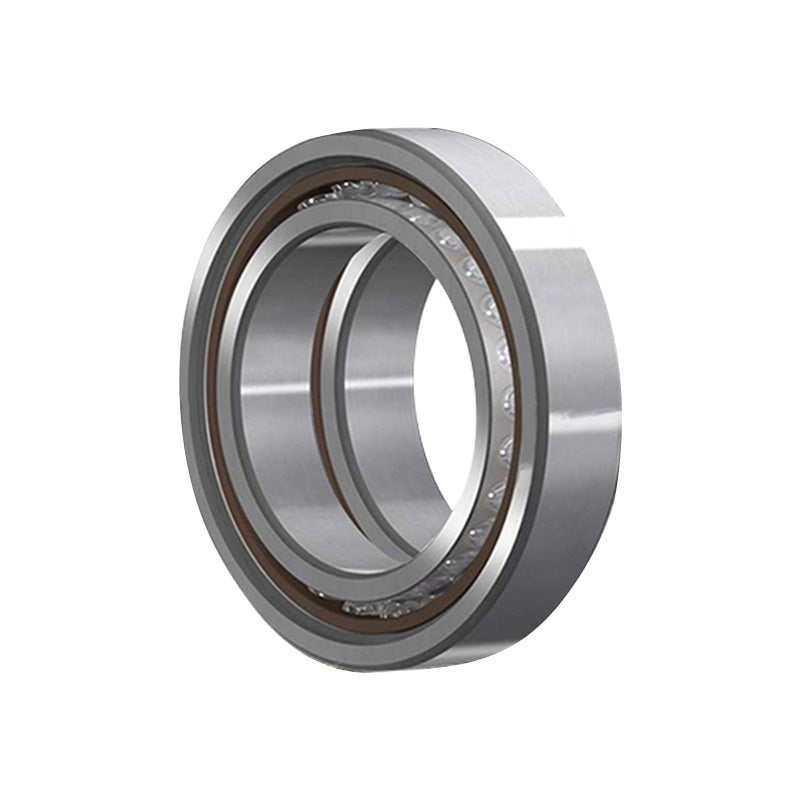

RHP 7907CSN24TRSULP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm

RHP 7907CSN24TRSULP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm
Regular price €347,95 ex VAT
Regular price Sale price €347,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €263,99
5+ €249,16
10+ €246,19
25+ €243,22
49+ €240,26
74+ €237,29
99+ €222,46
199+ €219,49
249+ €216,53
499+ €213,56
999+ €207,63
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> -12.7Kn
C<sub>or</sub> -9.15kN
Axial load Kn 7.82 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 11mm
Max speed in grease 33400 rpm
Max speed in oil 50700 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.065kg
