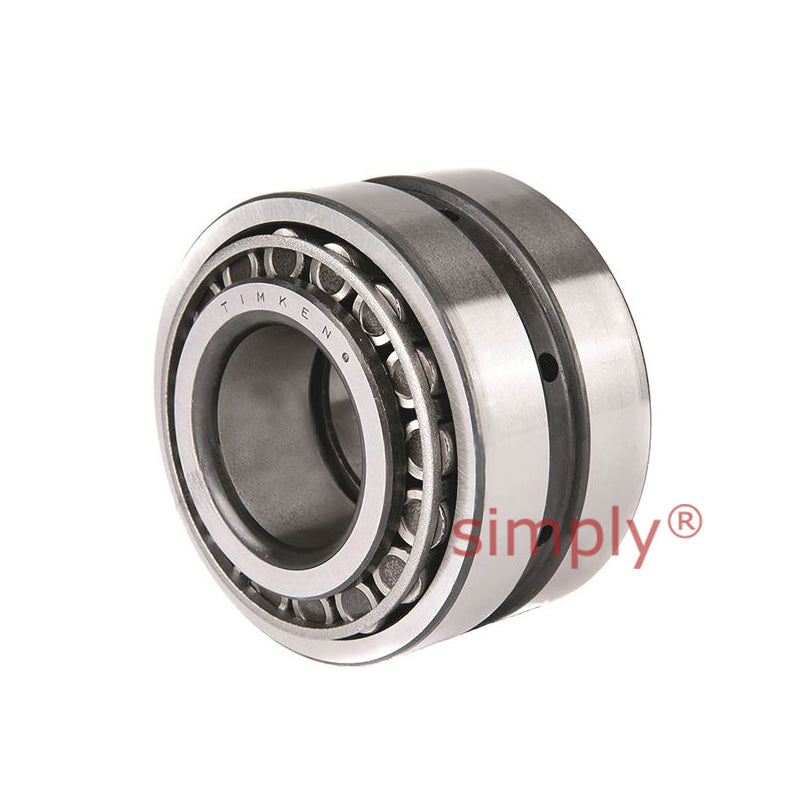

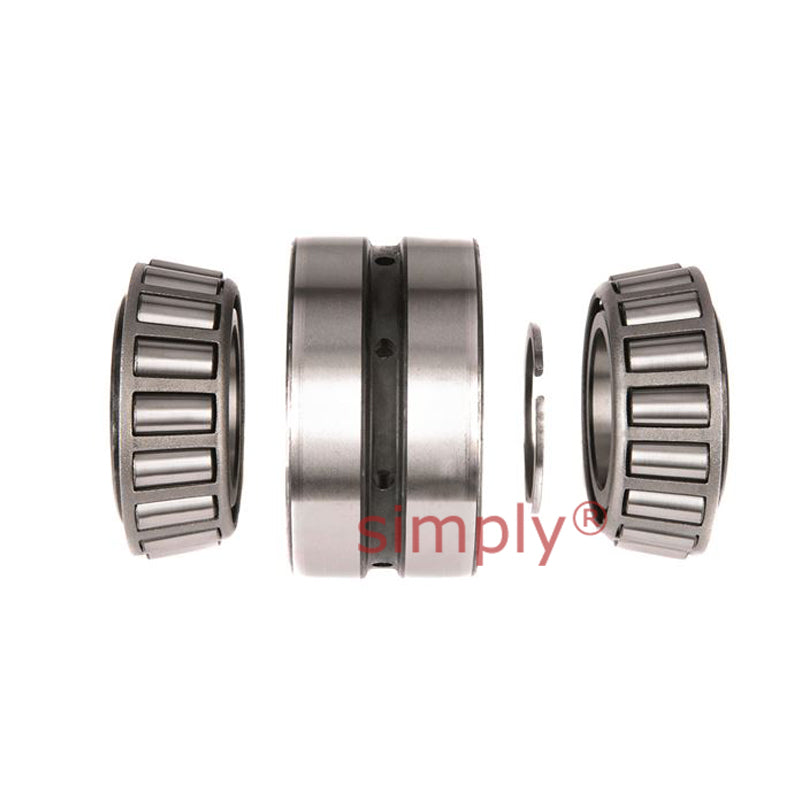

• Timken 766/752D TDO Double Outer Race Taper Roller Bearing 3.5x6.375x4.125x3.375 inch
  • Timken 766/752D TDO Double Outer Race Taper Roller Bearing 3.5x6.375x4.125x3.375 inch
1 2

SKU: 766/752D-TIM

Timken 766/752D TDO Double Outer Race Taper Roller Bearing 3.5x6.375x4.125x3.375 inch

Timken 766/752D TDO Double Outer Race Taper Roller Bearing 3.5x6.375x4.125x3.375 inch
€1.092,95 ex VAT
€1.092,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €830,19
20+ €783,55
30+ €774,22
40+ €764,89
50+ €755,57
75+ €746,24
100+ €699,60
200+ €690,27
250+ €680,94
500+ €671,61
1000+ €652,96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TDO_DOR_HEAD
Brand / Quality:
Timken - High Quality
Inside Diameter:
88.9mm = 3.5 (3-1/2) inch
Outside Diameter:
161.93mm = 6.375 (6-3/8) inch
Width:
104.78mm = 4.125 (4-1/8) inch
Technical
d 88.9mm = 3.5 inch
D 161.925mm = 6.375 inch
T 104.775mm = 4.125 inch
C 85.725mm = 3.375 inch
Dynamic (1) C1 528000N
Factors (5) e 0.34
Factors (5) Y1 1.98
Factors (5) Y2 2.95
Dynamic (2) C90 78500N
Dynamic (2) Ca90 45900N
Dynamic (2) C90(2) 137000N
Factors (5) K 1.71
Shaft max shaft fillet radius R(3) 7mm = 0.28 inch
Shaft backing shoulder diameter db 113mm = 4.45 inch
Housing max shaft fillet radius r(3) 1.5mm = 0.06 inch
Housing backing shoulder diameter Da 150mm = 5.91 inch
G1 177
G2 29.4
Cg 0.0945
