SKU: 7202A5TRDUMP3-RHP

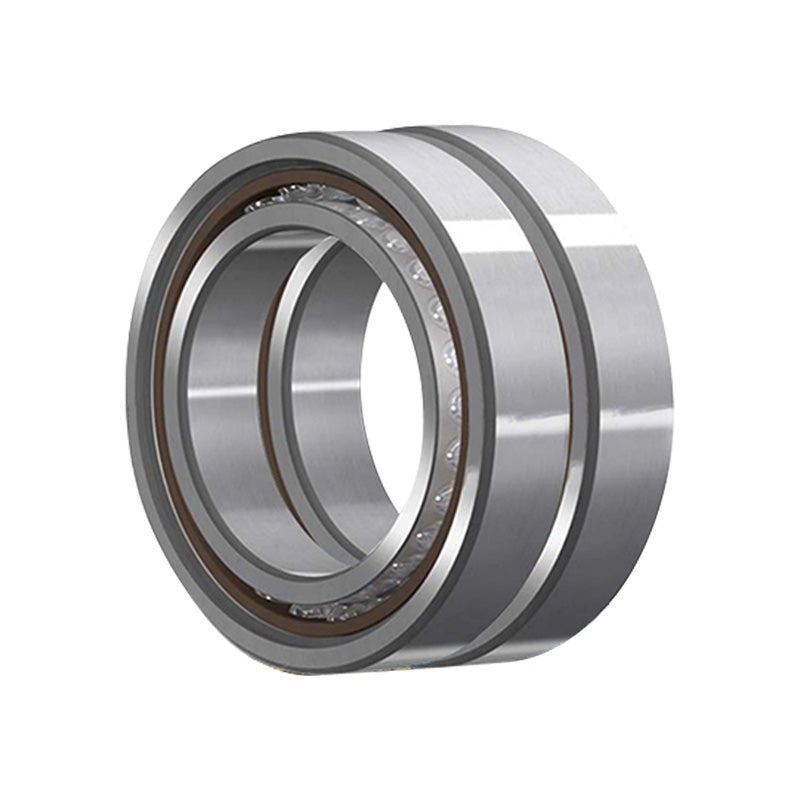

RHP 7202A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 15x35x11mm (Set of 2)

RHP 7202A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 15x35x11mm (Set of 2)
Regular price €232,95 ex VAT
Regular price Sale price €232,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €176,91
5+ €166,97
10+ €164,99
25+ €163,00
49+ €161,01
74+ €159,02
99+ €149,08
199+ €147,10
249+ €145,11
499+ €143,12
999+ €139,14
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 15mm
D 35mm
B 11mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 8.75Kn
C<sub>or</sub> 4.35kN
Axial load Kn 3.95 kN
Contact angle 25 degrees
Factor f<sub>o</sub> ?
Effective diameter 11.3mm
Max speed in grease 40000 rpm
Max speed in oil 60000 rpm
--- Fitting dimensions
d<sub>a min</sub> 20mm
D<sub>a max</sub> 30mm
D<sub>b max</sub> 32.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.088kg
