• High-Performance Male/Male Anti-Vibration Bobbin 50x35mm M10 Threads
1 1

SKU: 710-50351055

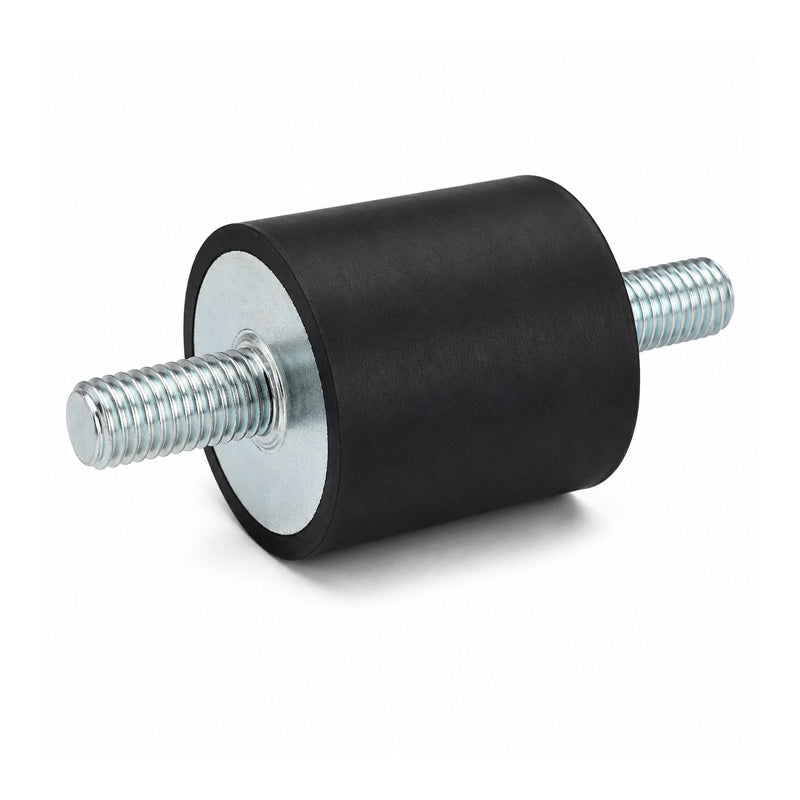

High-Performance Male/Male Anti-Vibration Bobbin 50x35mm M10 Threads

High-Performance Male/Male Anti-Vibration Bobbin 50x35mm M10 Threads
€11,95 ex VAT
€11,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €8,42
9+ €7,95
14+ €7,85
19+ €7,76
49+ €7,66
74+ €7,57
99+ €7,09
199+ €7,00
249+ €6,91
499+ €6,81
999+ €6,62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EDFYBFNBAI
Brand / Quality:
Simply AV Mounts
Thread Size:
M10
Outside Diameter:
50mm
Length:
35mm
Material:
Bright Zinc Plated Steel
Overall Length:
91mm
Technical
D 50mm
D1 M10
D2 M10
L 35mm
L1 28mm
L2 28mm
Deflection at Max Compressive Load 3.9mm
Deflection at Max Sheer Load 7.8mm
Max Compressive Load 193.6 kg
Max Sheer Load 58.4 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.17 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
