SKU: 70USSC80-UKF

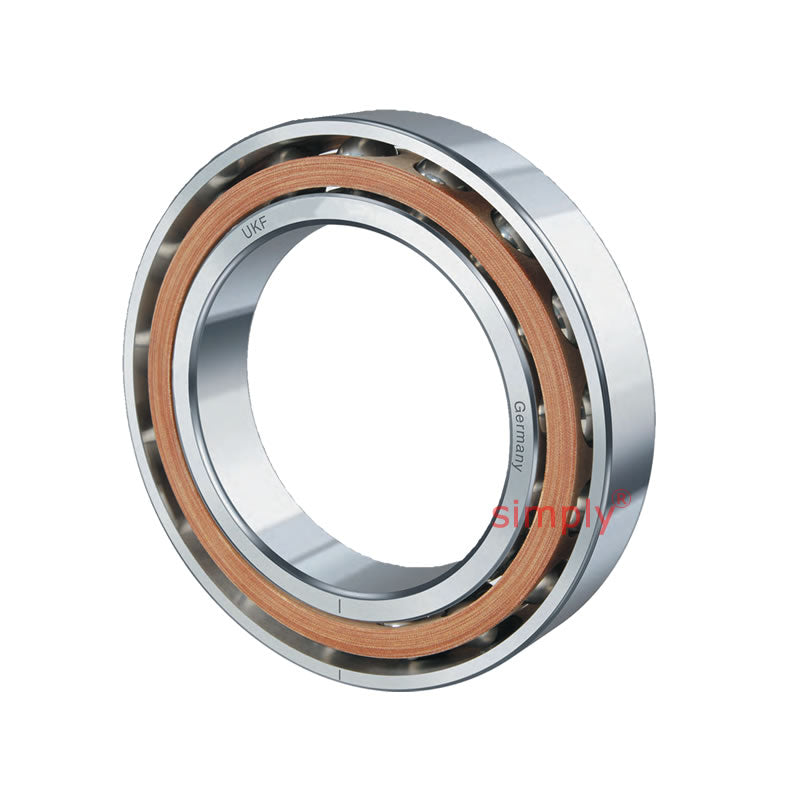

UKF 70USSC80 Super Precision Single Row Angular Contact Spindle Bearing 80x125x22mm
UKF 70USSC80 Super Precision Single Row Angular Contact Spindle Bearing 80x125x22mm
Equivalent to: 70USSC80
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 80mm |
|---|---|
| D | 125mm |
| B | 22mm |
| Dynamic load Co | 27775 N |
| Static load C | 39970 N |
| Speed in Grease | 12600 rpm |
| Speed in Oil | 19600 rpm |
| r<sub>a</sub> | 1mm |
| d<sub>a</sub> | 89mm |
| D<sub>a</sub> | 116mm |
| Axial Preload F<sub>v</sub> L | 410 N |
| Axial Preload F<sub>v</sub> M | 1260 N |
| Axial Preload F<sub>v</sub> S | 2520 N |
| Axial Rigidity R<sub>a</sub> L | 161 N/μm |
| Axial Rigidity R<sub>a</sub> M | 236 N/μm |
| Axial Rigidity R<sub>a</sub> S | 293 N/μm |
| Radial Rigidity R<sub>r</sub> L | 656 N/μm |
| Radial Rigidity R <sub>r</sub> M | 943 N/μm |
| Radial Rigidity <sub>r</sub> S | 1196 N/μm |
| Weight | 0.74 kg |
