SKU: 70USSC17-UKF

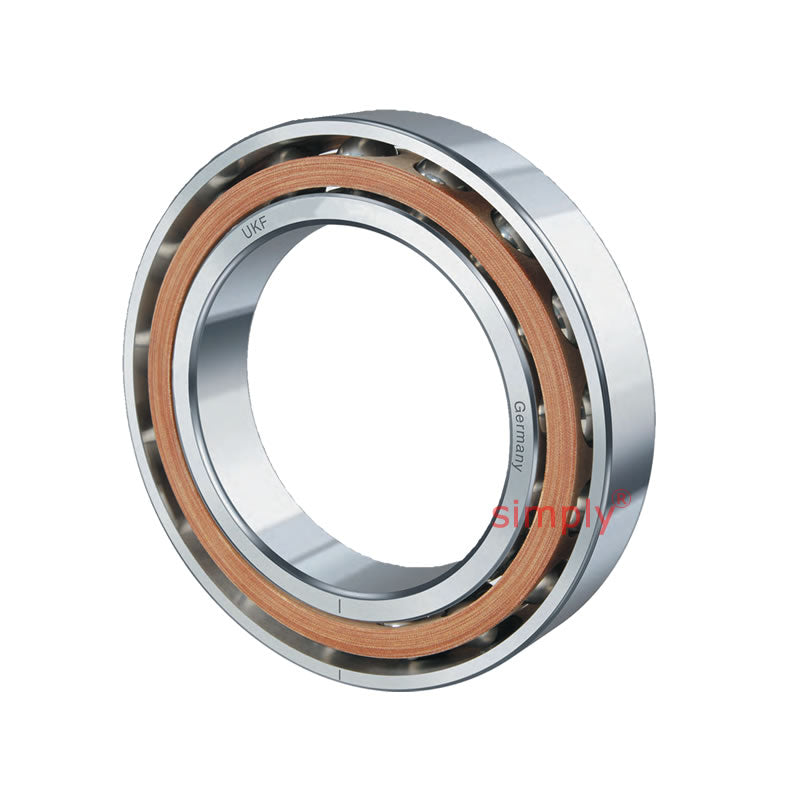

UKF 70USSC17 Super Precision Single Row Angular Contact Spindle Bearing 17x35x10mm
UKF 70USSC17 Super Precision Single Row Angular Contact Spindle Bearing 17x35x10mm
Equivalent to: 70USSC17
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| Dynamic load Co | 2200 N |
| Static load C | 5180 N |
| Speed in Grease | 50400 rpm |
| Speed in Oil | 77000 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 21mm |
| D<sub>a</sub> | 31mm |
| Axial Preload F<sub>v</sub> L | 50 N |
| Axial Preload F<sub>v</sub> M | 150 N |
| Axial Preload F<sub>v</sub> S | 310 N |
| Axial Rigidity R<sub>a</sub> L | 41 N/μm |
| Axial Rigidity R<sub>a</sub> M | 60 N/μm |
| Axial Rigidity R<sub>a</sub> S | 76 N/μm |
| Radial Rigidity R<sub>r</sub> L | 167 N/μm |
| Radial Rigidity R <sub>r</sub> M | 242 N/μm |
| Radial Rigidity <sub>r</sub> S | 305 N/μm |
| Weight | 0.04 kg |
