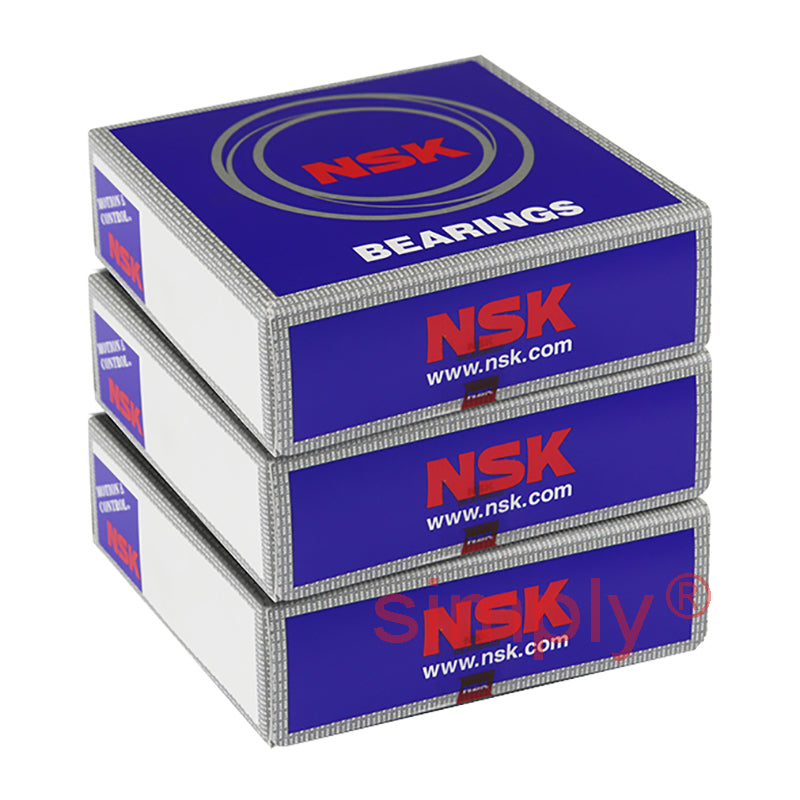

• NSK 7012CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 3)
1 1

SKU: 7012CTRDUDMP3-NSK

NSK 7012CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 3)

NSK 7012CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 3)
€749,95 ex VAT
€749,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €558,64
5+ €527,26
10+ €520,98
25+ €514,71
49+ €508,43
74+ €502,15
99+ €470,77
199+ €464,49
249+ €458,21
499+ €451,94
999+ €439,38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 37Kn
C<sub>or</sub> 30.5kN
Axial load Kn 19.9 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 19.4mm
Max speed in grease 14900 rpm
Max speed in oil 22600 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.215kg
