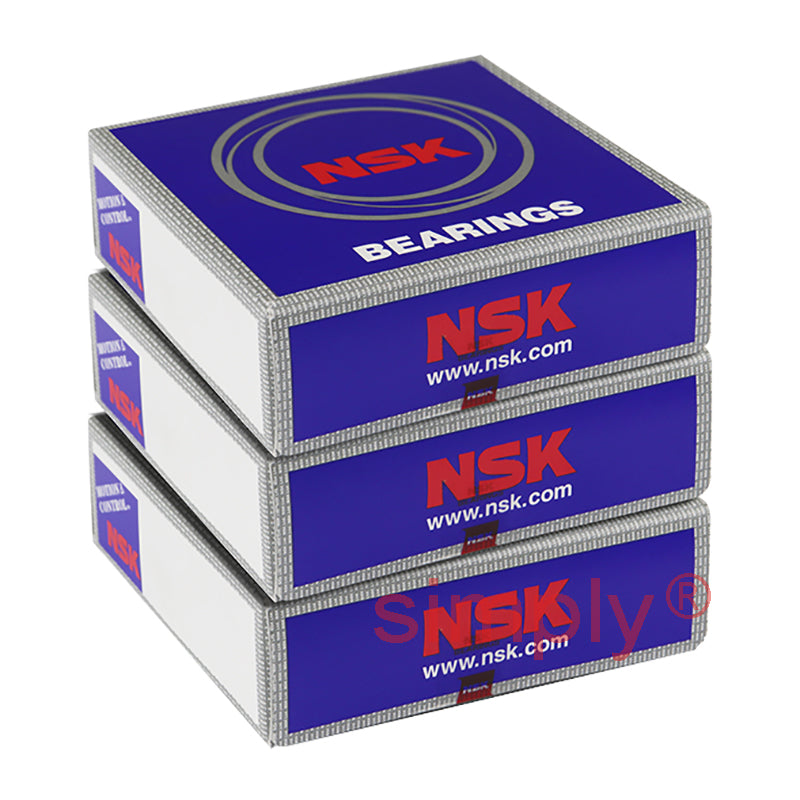

• NSK 7012CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 3)
1 1

SKU: 7012CTRDUDLP3-NSK

NSK 7012CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 3)

NSK 7012CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 3)
€728,95 ex VAT
€728,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €542,94
5+ €512,44
10+ €506,34
25+ €500,24
49+ €494,14
74+ €488,04
99+ €457,54
199+ €451,44
249+ €445,34
499+ €439,24
999+ €427,04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 37Kn
C<sub>or</sub> 30.5kN
Axial load Kn 19.9 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 19.4mm
Max speed in grease 14900 rpm
Max speed in oil 22600 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.215kg
