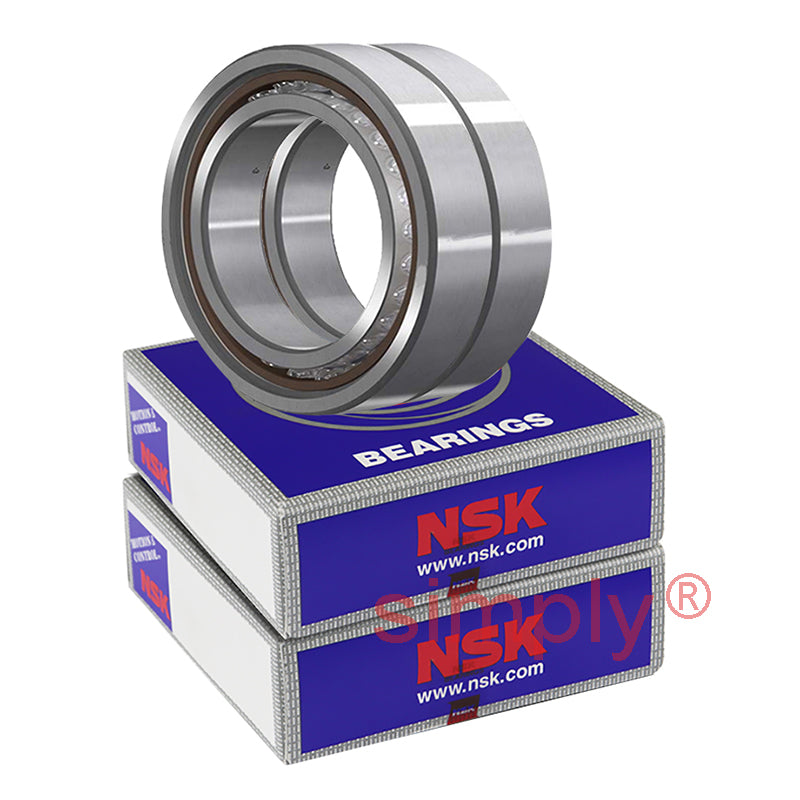

• NSK 7008CTRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 40x68x15mm (Set of 2)
1 1

SKU: 7008CTRV1VDULP3-NSK

NSK 7008CTRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 40x68x15mm (Set of 2)

NSK 7008CTRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 40x68x15mm (Set of 2)
€432,95 ex VAT
€432,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €328,28
5+ €309,84
10+ €306,15
25+ €302,46
49+ €298,77
74+ €295,08
99+ €276,64
199+ €272,95
249+ €269,26
499+ €265,57
999+ €258,20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
40mm
Outside Diameter:
68mm
Width:
15mm
Seals / Shields:
Rubber Sealed
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 40mm
D 68mm
B 15mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 21.6Kn
C<sub>or</sub> 15.9kN
Axial load Kn 10.6 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.4
Effective diameter 14.7mm
Max speed in grease 21300 rpm
Max speed in oil 32500 rpm
--- Fitting dimensions
d<sub>a min</sub> 46mm
D<sub>a max</sub> 62mm
D<sub>b max</sub> 63mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.378kg
