SKU: 7007CTRSULP3-RHP

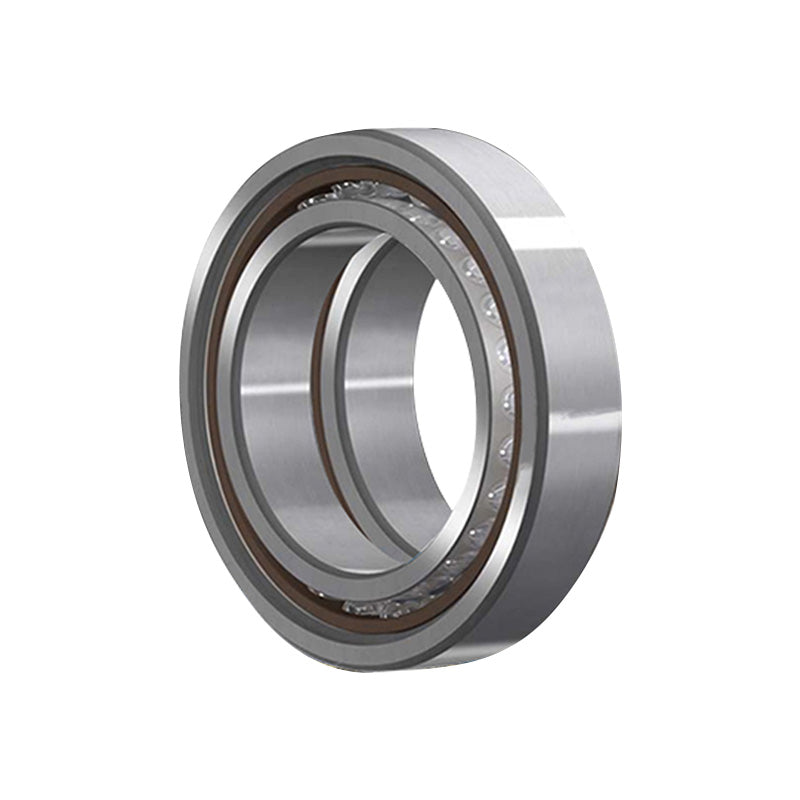

RHP 7007CTRSULP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm

RHP 7007CTRSULP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm
Regular price €143,95 ex VAT
Regular price Sale price €143,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €108,66
5+ €102,56
10+ €101,34
25+ €100,12
49+ €98,90
74+ €97,68
99+ €91,57
199+ €90,35
249+ €89,13
499+ €87,91
999+ €85,47
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.1Kn
C<sub>or</sub> 13.7kN
Axial load Kn 9.35 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15
Effective diameter 13.5mm
Max speed in grease 23800 rpm
Max speed in oil 36100 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.151kg
