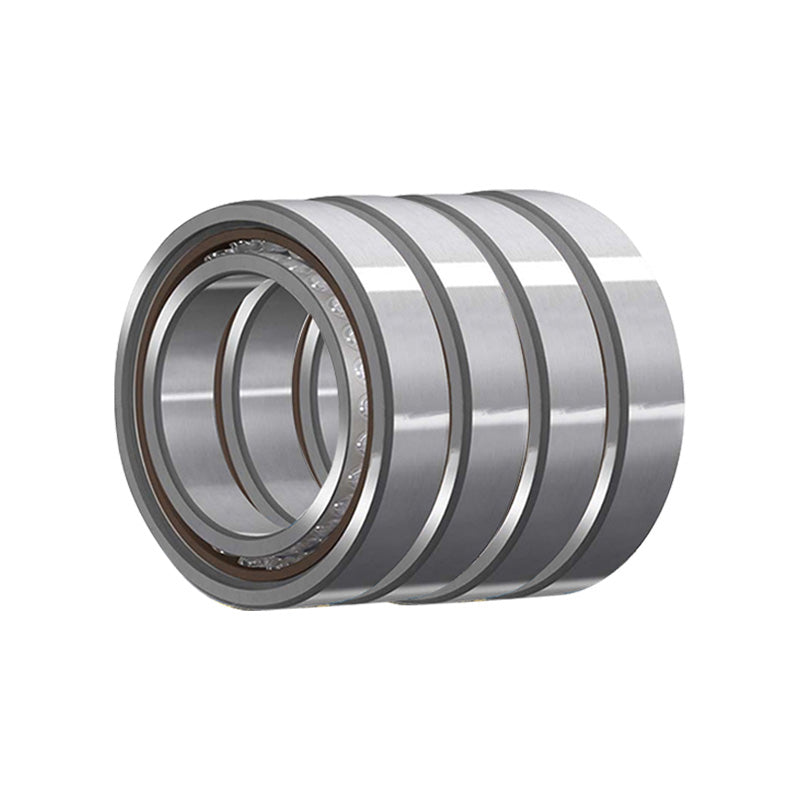

RHP 7007CTRQUMP4 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 4)

RHP 7007CTRQUMP4 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 4)
Regular price €551,95 ex VAT
Regular price Sale price €551,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €419,02
5+ €395,48
10+ €390,77
25+ €386,07
49+ €381,36
74+ €376,65
99+ €353,11
199+ €348,40
249+ €343,69
499+ €338,98
999+ €329,57
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.1Kn
C<sub>or</sub> 13.7kN
Axial load Kn 9.35 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15
Effective diameter 13.5mm
Max speed in grease 23800 rpm
Max speed in oil 36100 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.604kg
