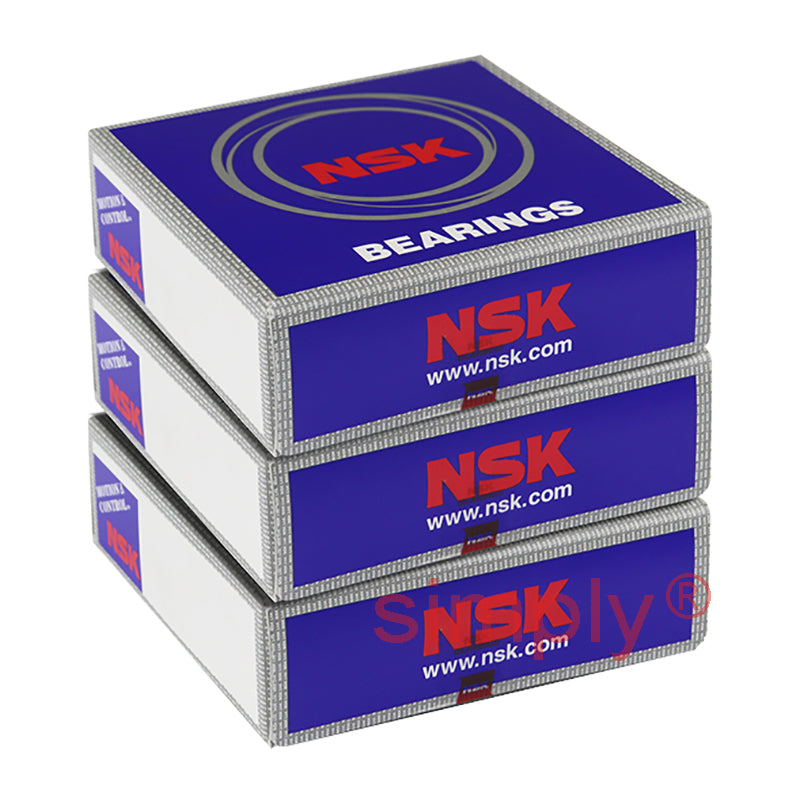

• NSK 7007CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 3)
1 1

SKU: 7007CTRDUDMP3-NSK

NSK 7007CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 3)

NSK 7007CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 3)
€412,95 ex VAT
€412,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €307,45
5+ €290,18
10+ €286,72
25+ €283,27
49+ €279,81
74+ €276,36
99+ €259,09
199+ €255,63
249+ €252,18
499+ €248,72
999+ €241,82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.1Kn
C<sub>or</sub> 13.7kN
Axial load Kn 9.35 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15
Effective diameter 13.5mm
Max speed in grease 23800 rpm
Max speed in oil 36100 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.453kg
