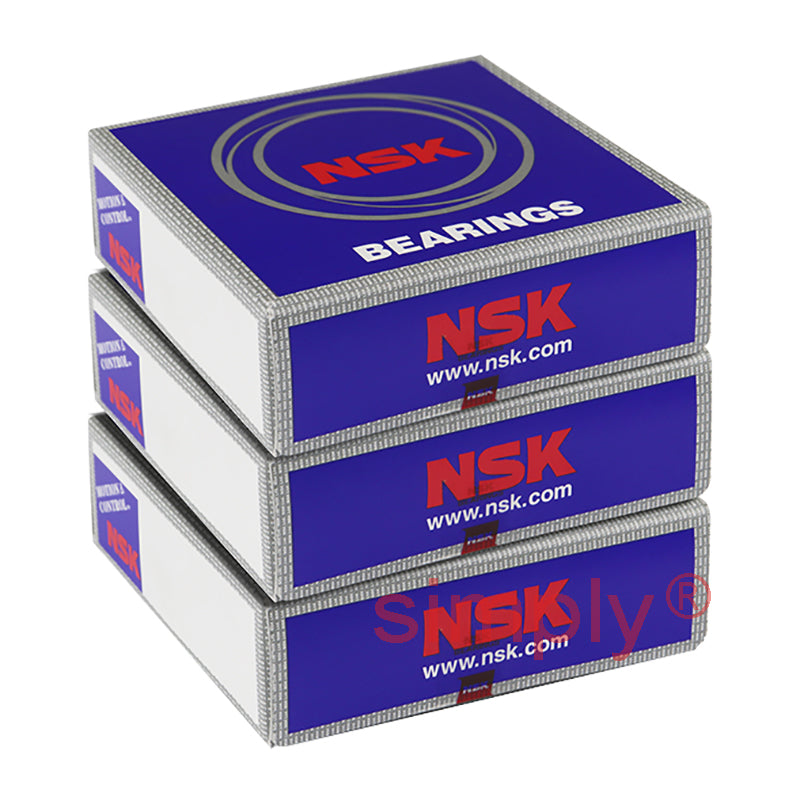

• NSK 7007A5TRDUDLP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 3)
1 1

SKU: 7007A5TRDUDLP3-NSK

NSK 7007A5TRDUDLP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 3)

NSK 7007A5TRDUDLP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 3)
€400,95 ex VAT
€400,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €298,29
5+ €281,53
10+ €278,18
25+ €274,83
49+ €271,48
74+ €268,13
99+ €251,37
199+ €248,02
249+ €244,67
499+ €241,32
999+ €234,61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 19.1Kn
C<sub>or</sub> 13kN
Axial load Kn 11.4 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 18.3mm
Max speed in grease 20700 rpm
Max speed in oil 31000 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.453kg
