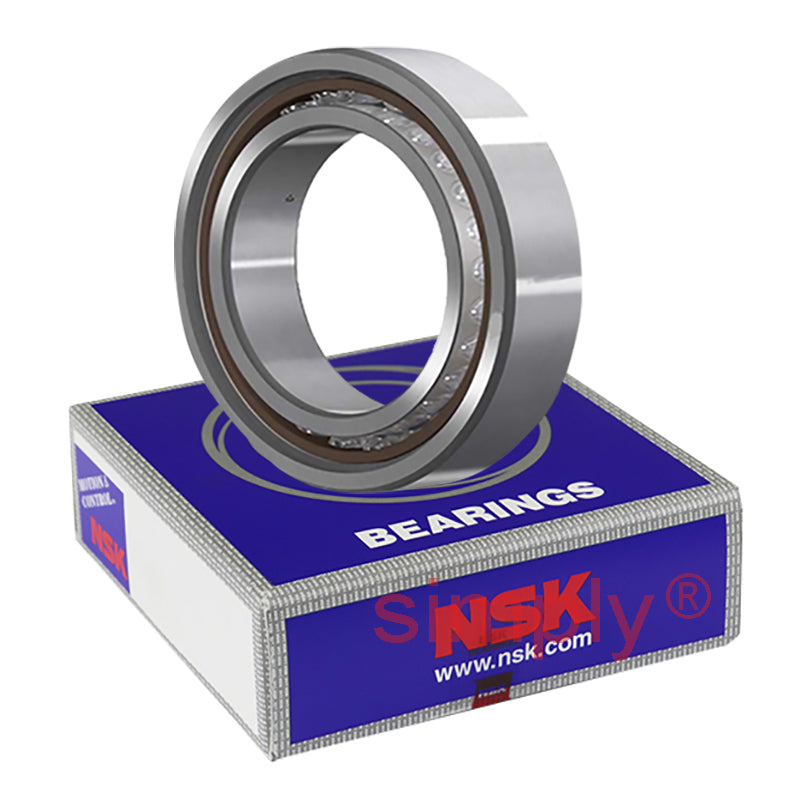

• NSK 7004CTRSUMP3 Super Precision Angular Contact Spindle Bearing 20x42x12mm
1 1

SKU: 7004CTRSUMP3-NSK

NSK 7004CTRSUMP3 Super Precision Angular Contact Spindle Bearing 20x42x12mm

NSK 7004CTRSUMP3 Super Precision Angular Contact Spindle Bearing 20x42x12mm
€124,95 ex VAT
€124,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €92,52
5+ €87,32
10+ €86,28
25+ €85,24
49+ €84,20
74+ €83,16
99+ €77,96
199+ €76,92
249+ €75,88
499+ €74,84
999+ €72,77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
20mm
Outside Diameter:
42mm
Width:
12mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 20mm
D 42mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 11.7Kn
C<sub>or</sub> 6.55kN
Axial load Kn 4.8 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14
Effective diameter 10.1mm
Max speed in grease 37100 rpm
Max speed in oil 56500 rpm
--- Fitting dimensions
d<sub>a min</sub> 25mm
D<sub>a max</sub> 37mm
D<sub>b max</sub> 39.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.067kg
