SKU: 6938-NTN

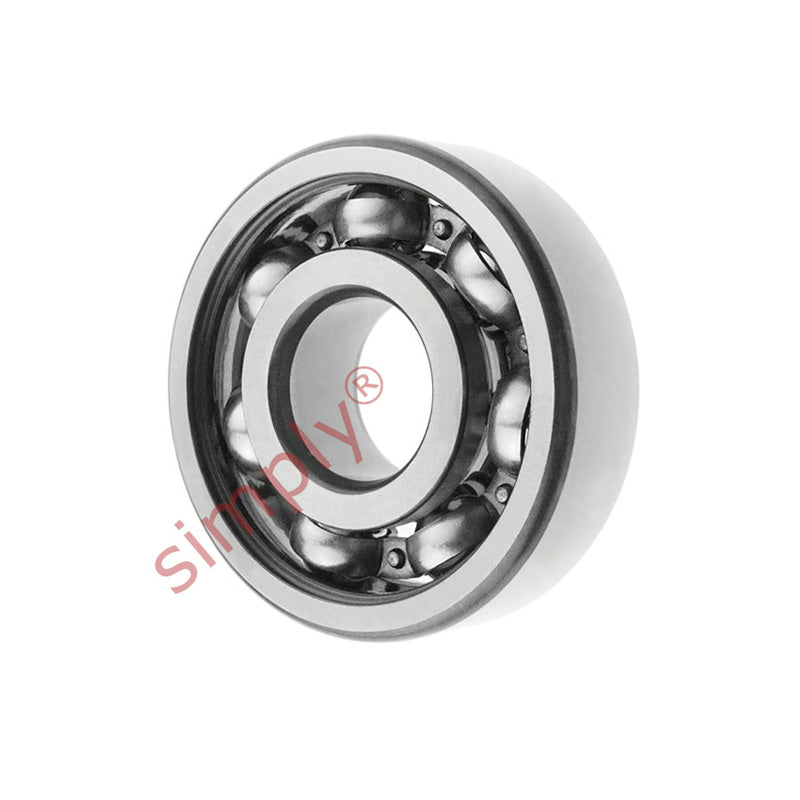

NTN 6938 Open Type Deep Groove Ball Bearing 190x260x33mm
NTN 6938 Open Type Deep Groove Ball Bearing 190x260x33mm
Regular price
€707,95
ex VAT
Regular price
Sale price
€707,95
ex VAT
Equivalent to: 6938CM 61938CM 9338K 61938 61938S AY190
In stock
Price Break
3+
€537,43
5+
€507,23
10+
€501,20
25+
€495,16
49+
€489,12
74+
€483,08
99+
€452,89
199+
€446,85
249+
€440,81
499+
€434,77
999+
€422,70
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 260mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 190mm |
| D | 260mm |
| B | 33mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 125 kN |
| C<sub>or</sub> | 127 kN |
| C<sub>u</sub> | 5.65 kN |
| f<sub>0</sub> | 16.6 kN |
| Grease | 2300 rpm |
| Oil | 2700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 199mm |
| D<sub>a</sub> Max. | 251mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 4.98 kg |
