SKU: 6938/C3-NACHI

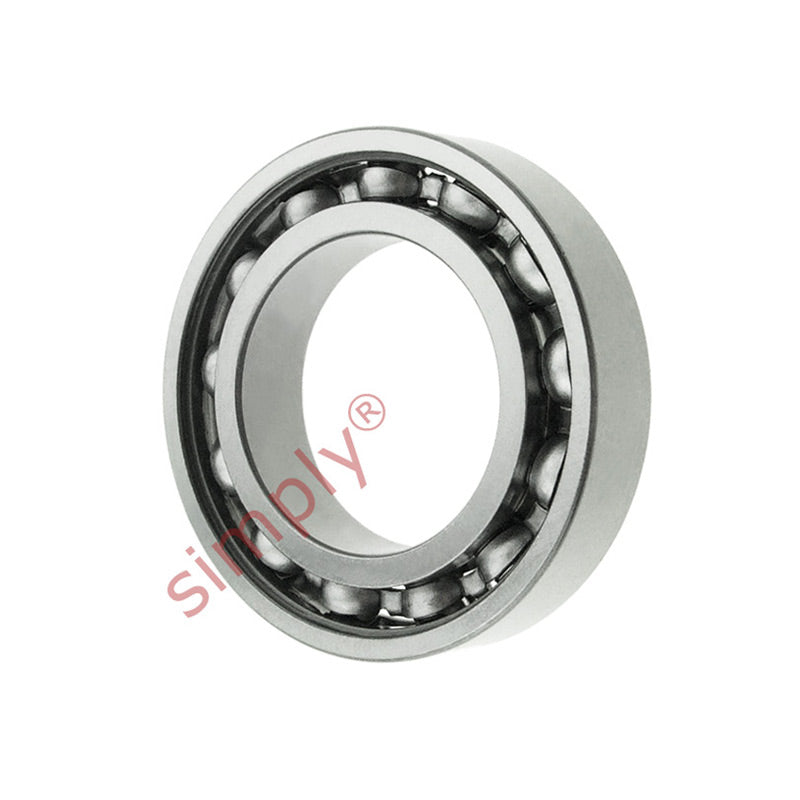

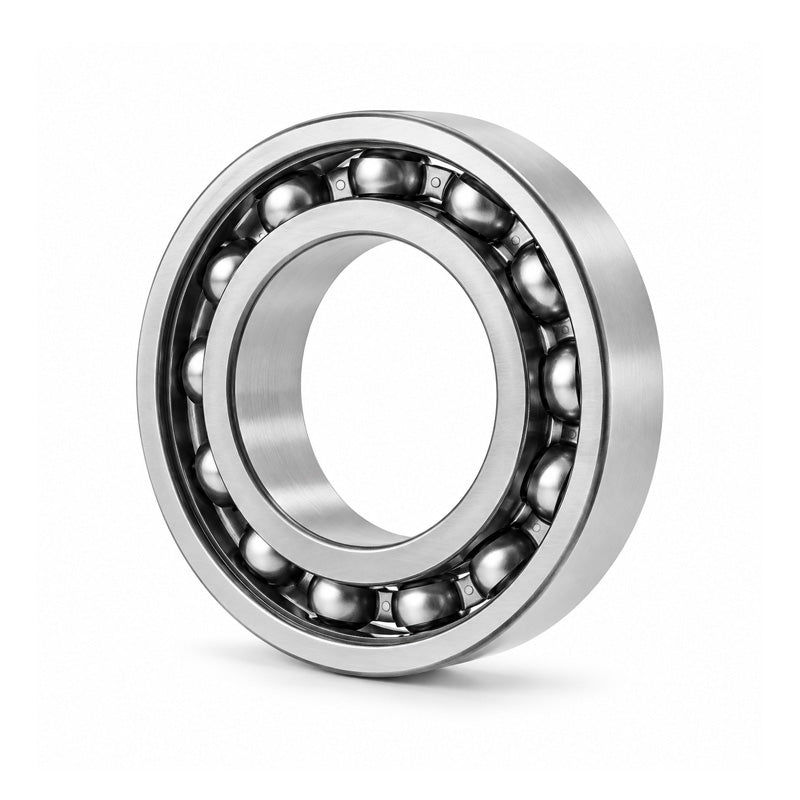

NACHI 6938C3 Thin Section Open Deep Groove Ball Bearing 190x260x33mm
NACHI 6938C3 Thin Section Open Deep Groove Ball Bearing 190x260x33mm
Equivalent to: 61938C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 260mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 190mm |
|---|---|
| Outside Diameter D | 260mm |
| Width B | 33mm |
| Min radius r | 2mm |
| Dynamic load | 108000 kN |
| Static load | 123000 kN |
| Max speed in oil | 2700 rpm |
| Max speed in grease | 2300 rpm |
| da min | 198mm |
| Da max | 252mm |
| ra max | 2mm |
| Weight | 4.9 kg |
